I100

Rugged Laptop

Powerful & Expandable　
Built for Harsh Environments

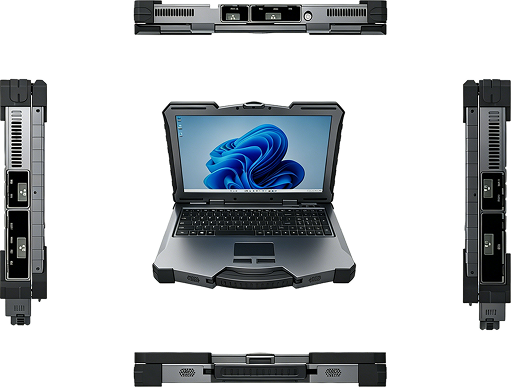

The I100 Fully Rugged Laptop is a high-performance mobile workstation built for demanding outdoor and field environments. It delivers powerful computing and professional graphics capabilities to easily handle a full range of professional workloads with steady efficiency．
The 15.6-inch high-brightness optically bonded sunlight-readable display ensures clear visibility even in direct strong sunlight. The optional multi-touchscreen enables smooth operation in rainy conditions, low-temperature environments and while wearing gloves.

It features a hot-swappable dual-battery system for reliable all-day power to support long uninterrupted tasks. The lightweight magnesium-aluminum chassis combines solid structure and portability, with full dust and water protection, stable performance in wide temperatures, and strong resistance to drops, vibration and corrosion.

With rich professional interfaces, stable wireless connectivity, modular expansion and hardware-level security, the I100 adapts flexibly to various mission scenarios and provides consistent reliability for field professionals in the toughest working conditions.

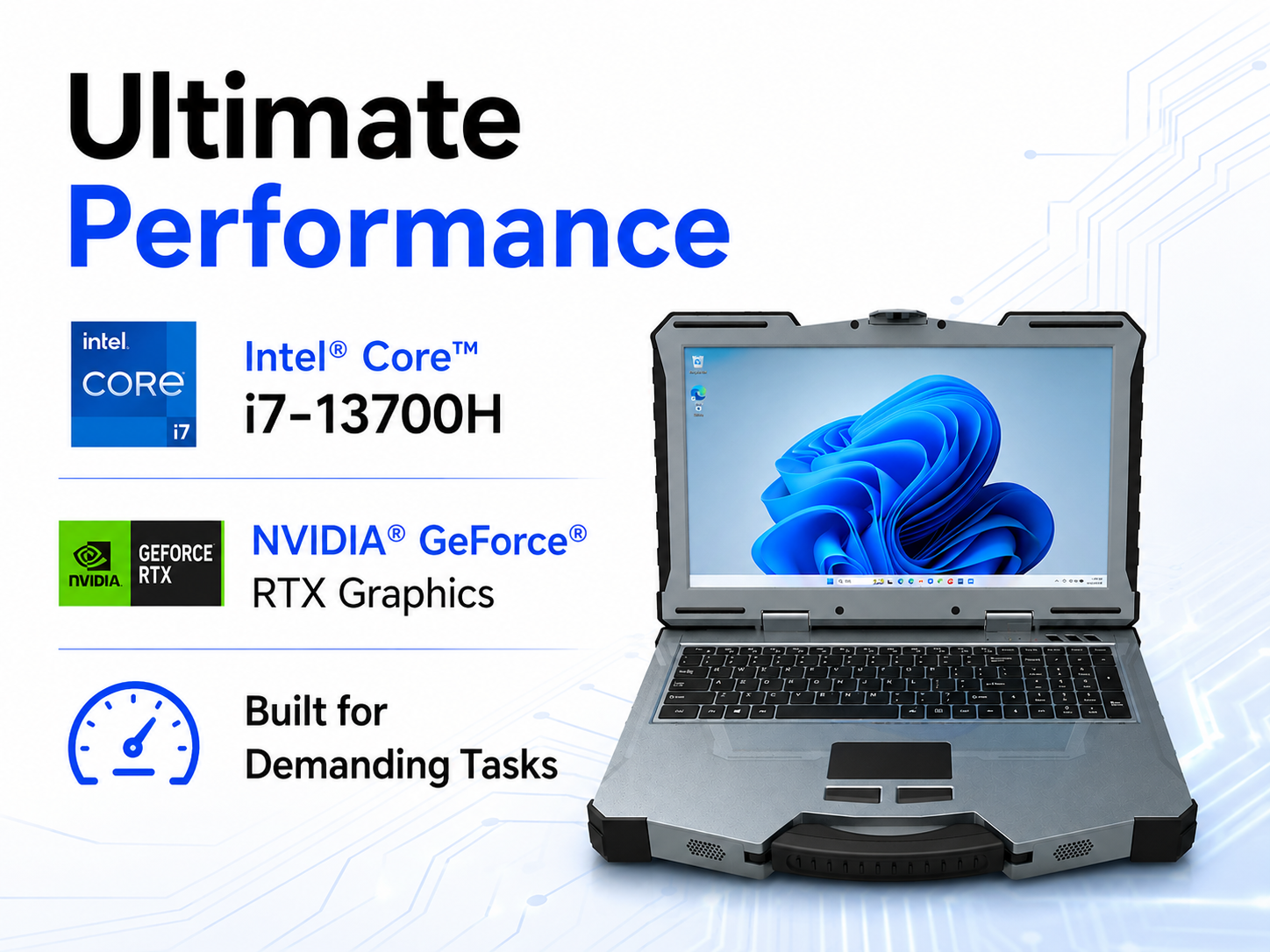

Ultimate Performance

Powered by 13th Gen Intel® Core™ processors and optional NVIDIA® GeForce® RTX graphics, the I100 delivers consistent performance for compute-intensive and graphics-demanding applications. With up to 64GB DDR5 memory and high-speed PCIe Gen4 storage, it enables efficient multitasking and fast data processing in the field.

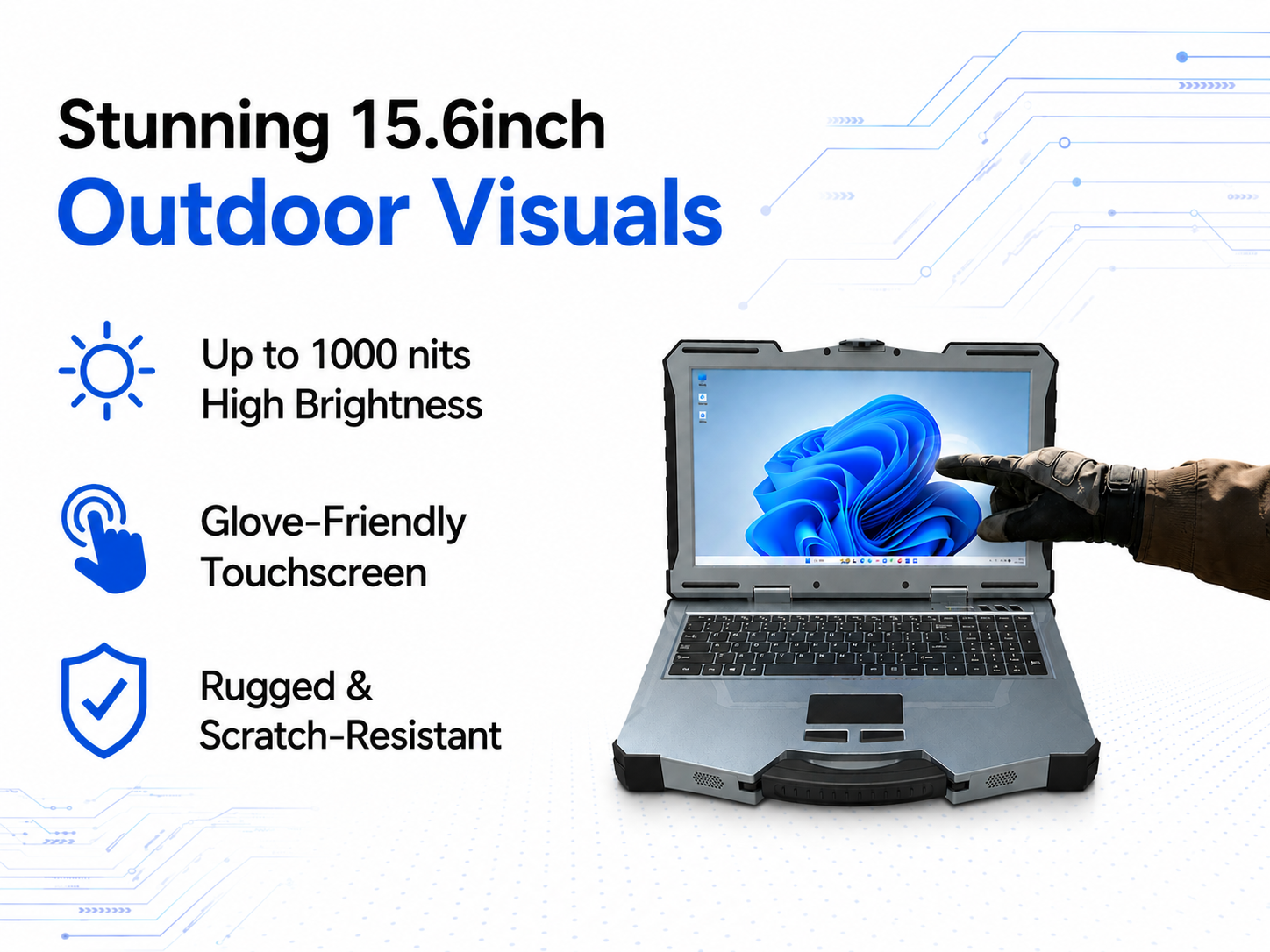

Stunning Outdoor Visuals

The 15.6-inch high-brightness optically bonded display features up to 1000 nits peak brightness, delivering crystal-clear visibility in direct sunlight while effectively eliminating glare and reflections. The optional capacitive multi-touch supports glove-friendly operation. Its rugged reinforced panel provides excellent scratch and shock resistance, keeping the screen visible and responsive in all outdoor working conditions.

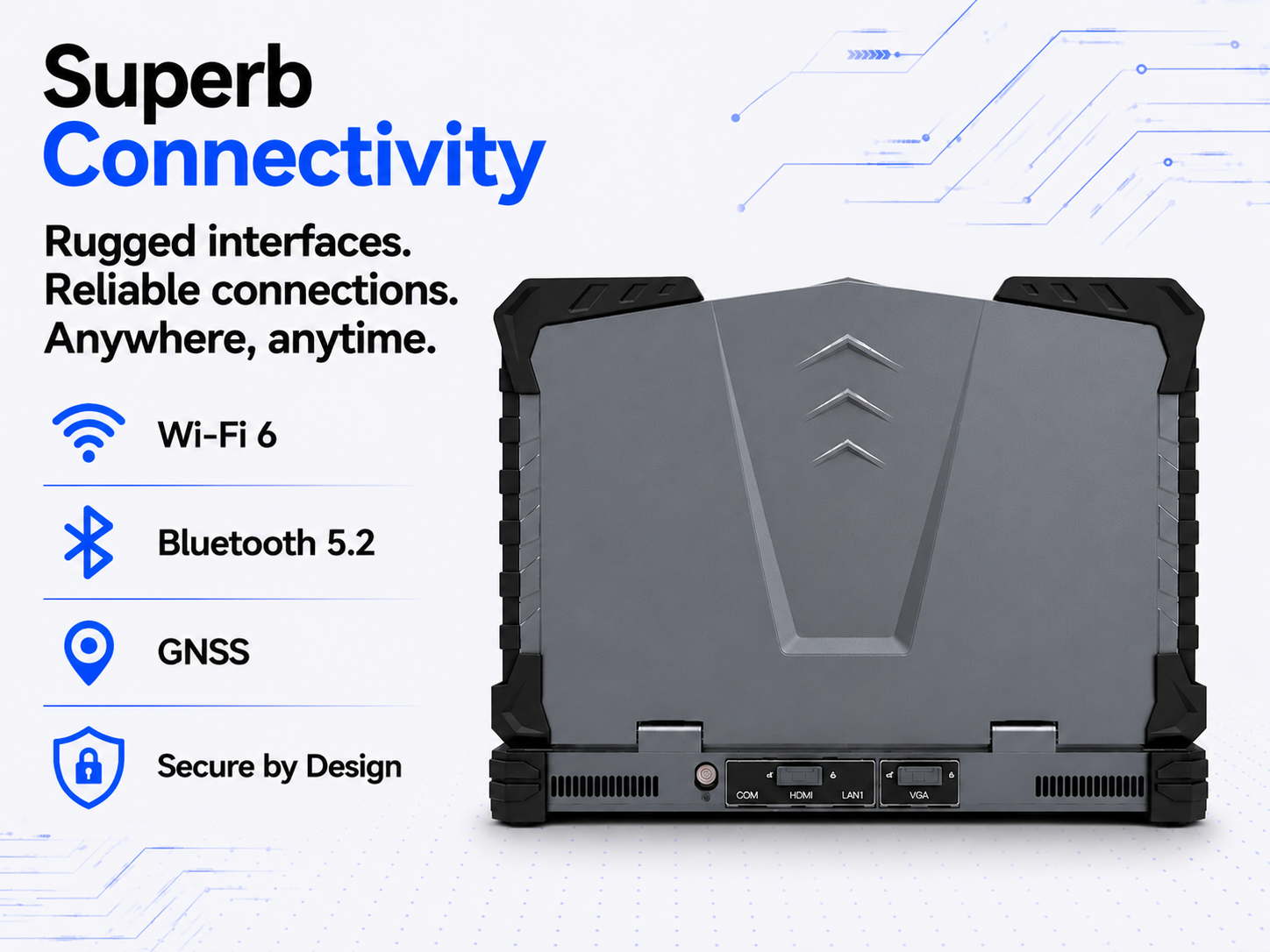

Superb Connectivity

The I100 is equipped with a full suite of rugged‑optimized interfaces, including USB Type‑C,multiple USB ports, dual LAN, HDMI, and optional serial interfaces,ensuring seamless connectivity even in remote field locations. Integrated Wi-Fi 6, Bluetooth, and GNSS ensure reliable communication, while hardware-level security features help protect system access and data transmission.

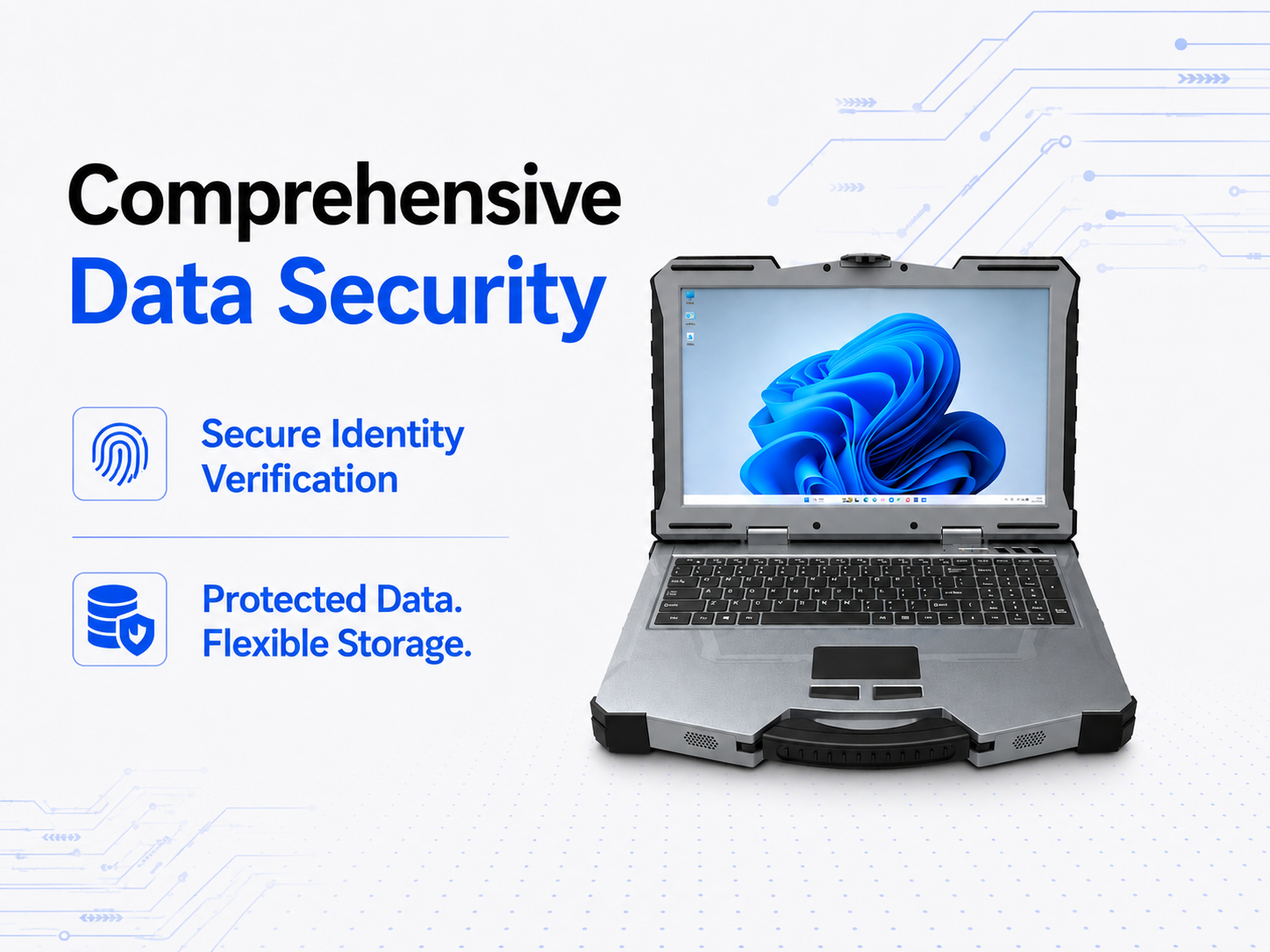

Comprehensive Data Security

The I100 offers a comprehensive suite of security features designed to protect both system access and critical data. Authentication is supported through multi-factor mechanisms, including a fingerprint reader, smart card reader, and optional Windows Hello camera for secure identity verification.

For data protection, the I100 provides flexible storage configurations, optional dual drives, and secure data handling capabilities, ensuring that sensitive information remains safeguarded throughout operation. Together, these features make the I100 well-suited for the data security requirements of mission-critical industries.

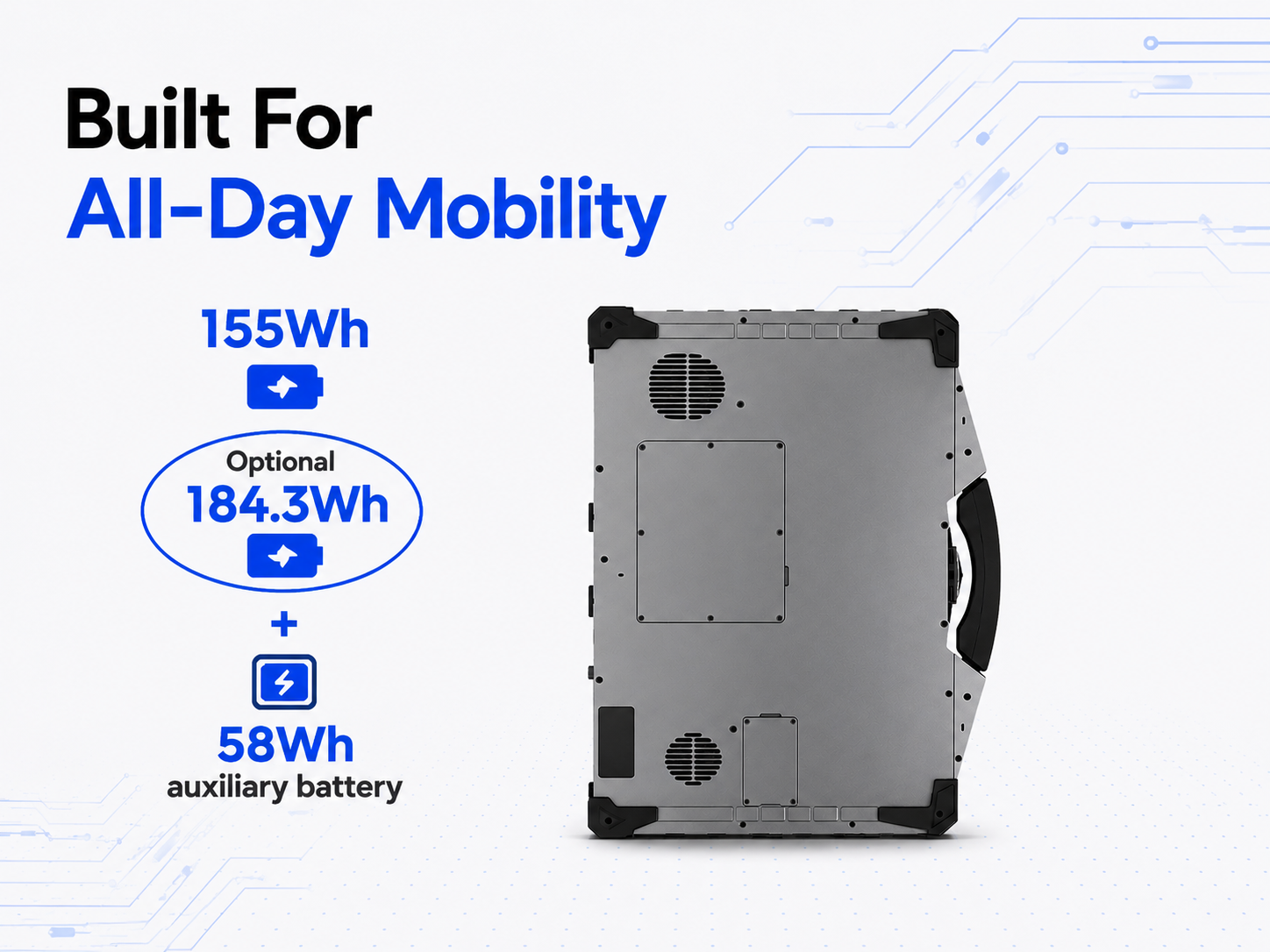

Built For All-Day Mobility

Designed for uninterrupted field operations, the I100 features a hot-swappable dual-battery system. A 155Wh main battery (with an optional 184.3Wh low-temperature version) combined with a 58Wh auxiliary battery delivers stable, all-day power for sustained productivity during extended use.Its lightweight magnesium-aluminum alloy chassis balances durability and portability, making it well-suited for mobile field applications.

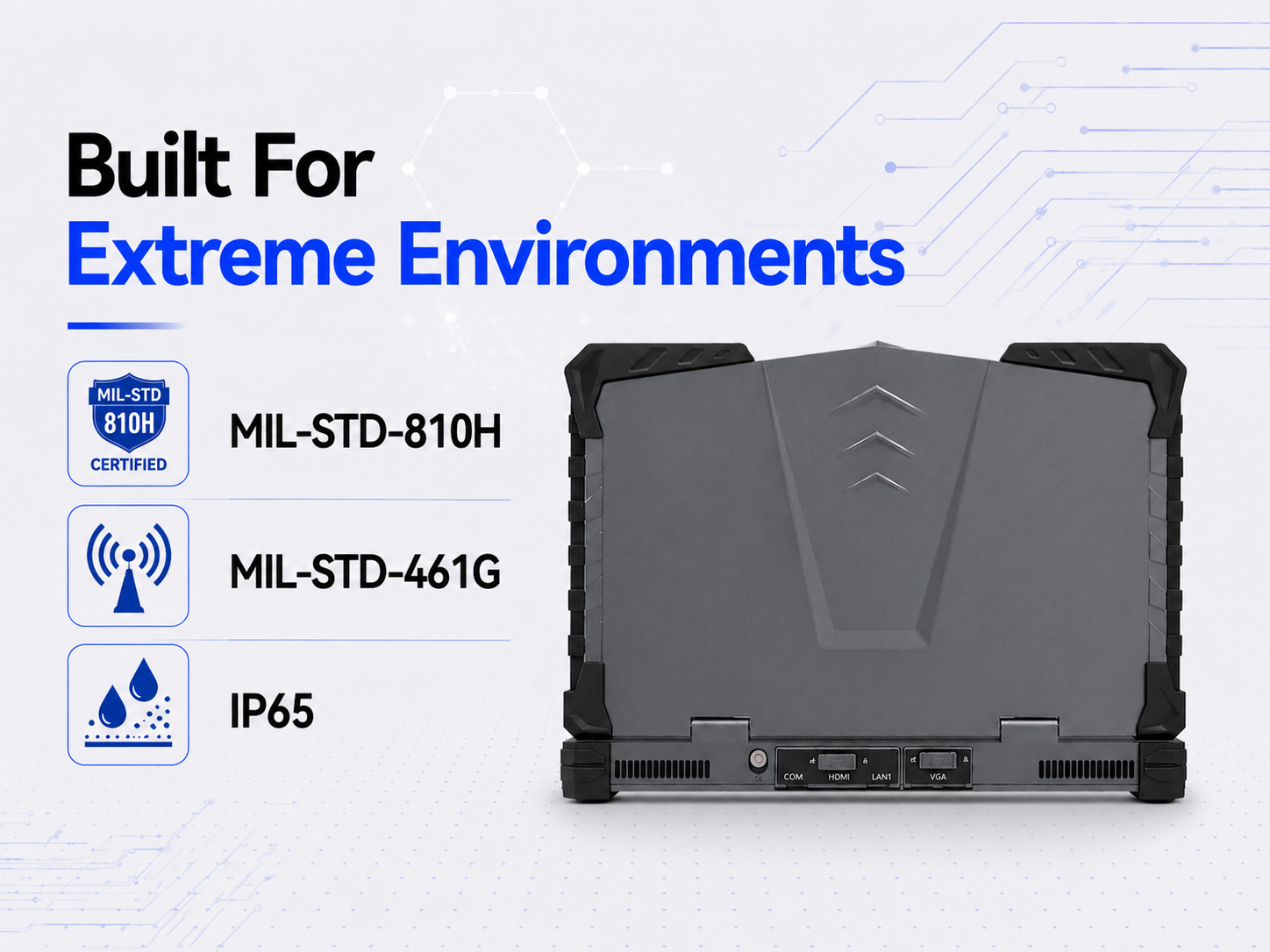

Built For Extreme Environmrnts

Engineered for exceptional performance in harsh environments, designed to meet selected MIL-STD-810H environmental test methods and MIL-STD-461G EMC requirements. The enclosure is designed for IP65 ingress protection and built to withstand extreme temperatures, shock, vibration, and corrosion. Whether deployed in industrial fieldwork, outdoor operations, or emergency response, it delivers the durability and reliability professionals depend on.

Unlock the Power of Customization with I100

The I100’s modular design offers unparalleled customization, meeting the unique needs of various industries and applications. From expanding storage to adding connectivity options, users can configure the I100 with up to 8TB of storage, dual drives, and optional 5G connectivity or additional serial interfaces.

Whether you need enhanced graphics for professional applications or specific industry modules, the I100 provides flexible solutions that adapt easily through docking stations and other peripherals. Its rugged design ensures it can handle any task, whether it’s field operations or data processing in remote environments. With powerful performance, flexibility, and robust data security, the I100 is built to excel in mission-critical environments.

I100 Specifications

Download PDF

CPU

Standard: Intel Core i7-13700H, 24M Cache, up to 5.0GHz
Optional: i9-13900H / Ultra 5 235H / Ultra 7 255H / Ultra 9 285H

Graphics Controller

Intel Iris Xe Graphics (1.50GHz)
Optional: NVIDIA RTX 4060M 8GB

Memory

16GB/32GB DDR5, expandable up to 64GB

Storage

Optional: 128GB/256GB/512GB/1TB/2TB/4TB/8TB（GEN4*4 NVME）
Optional: Disk Wiper

Display

15.6'' FHD (1920×1080)
1,000 nits sunlight readable display with optical bonding,
supports capacitive multi-touch screen

Keyboard

Backlit membrane keyboard with waterproof construction

Communication

1000M Ethernet
Intel® Wi-Fi 6 802. 11ax (removable)
Bluetooth (v5.2) (removable)
4G LTE mobile broadband (removable)
Standard precision GNSS (GPS, GLONASS, Galileo) (On board)

I/OInterfaces

USB Type-C (Full-Featured)*1
USB 3.0　port* 3
Ethernet (RJ45) * 2
COM*1+VGA*1 (Optional; 2*COM)
HDMI 2.1port (type A)*1
DC-In jack*1
Audio in/out (combo jack)*1
Grounding Post*1
Custom aviation connector*1

Environmental Specification

Temperature:
-Operating: -20ºC to 55ºC (Customizable: -40ºC to 55ºC)
-Storage:- 40ºC to 70ºC (Customizable: -50ºC to 70ºC)
Humidity: 5% - 95% RH, non-condensing

Battery

Main battery: 155Wh hot-swappable; 184.3Wh low-temp version optional
Aux battery: 58Wh (non-removable)

Adapter

Input voltage: AC100V~240V, 60/50Hz, Output voltage: DC 19V, 9.47A

Ruggedness

Designed to meet MIL-STD-810H & MIL-STD-461G
IP65 dust and water ingress protection
