RP30

Rugged Tablet

Rugged Communication Tablet
Built for Connected Field Operations

The RP30 is a 10.1-inch rugged communication tablet designed for secure field operations, industrial mobility, and mission-critical applications. Powered by the RK3588 ARM platform and running Kylin V10, it delivers reliable performance, high system stability, and strong compatibility for professional field use.

With a 1000-nit sunlight-readable display, 5G/4G wireless communication, dual cameras, barcode scanning, and multiple Type-C based interfaces, the RP30 supports real-time data collection, mobile command, and outdoor communication tasks. Its rugged design is engineered to withstand wide temperature ranges, vibration, shock, drops, rain, dust, salt mist, and other demanding operating environments.

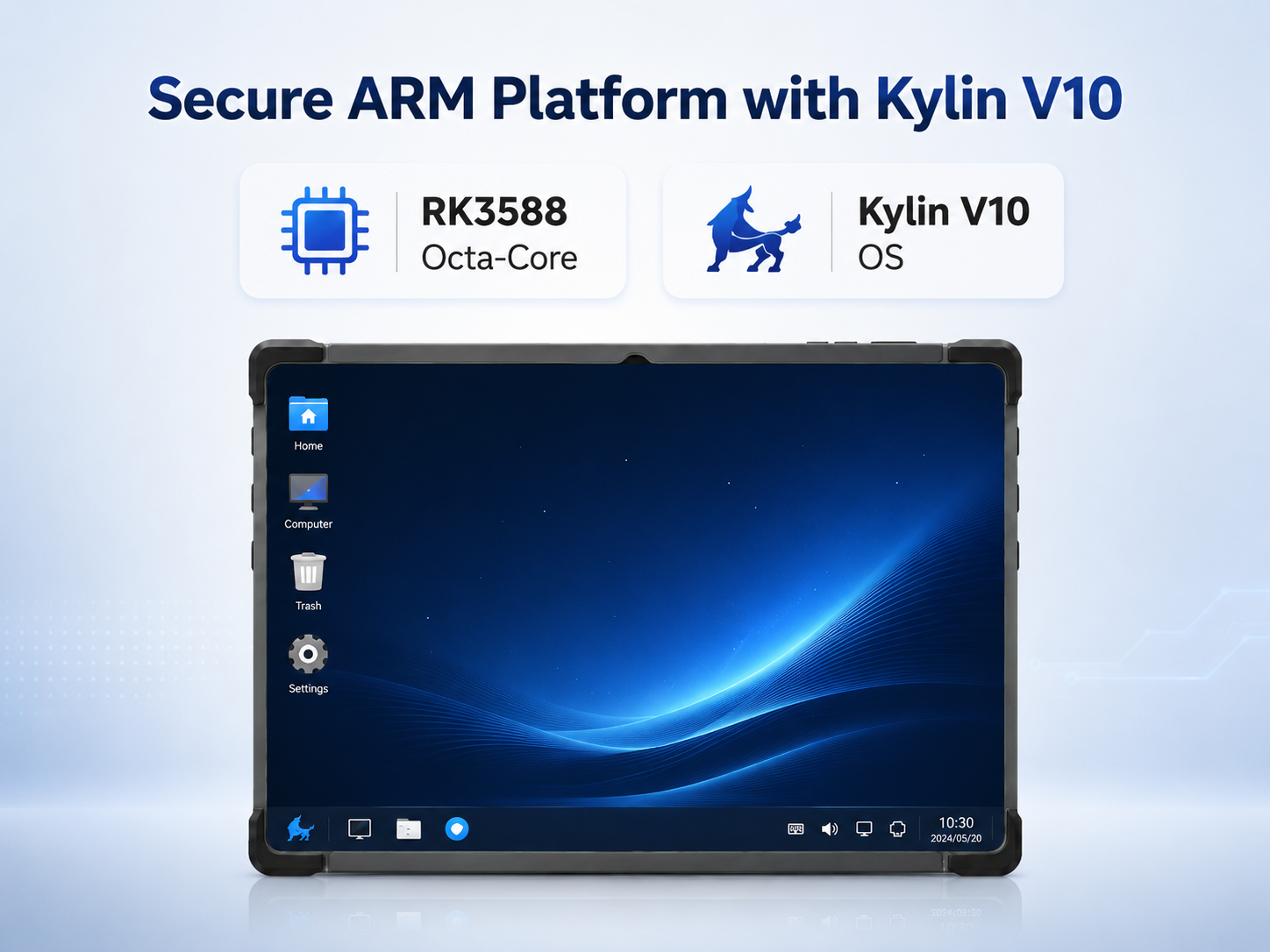

Secure ARM Platform with Kylin V10

Powered by the Rockchip RK3588 octa-core processor and running Kylin V10, the RP30 delivers stable ARM-based computing performance for secure field communication, mobile command, and industrial applications. With 16GB LPDDR4 memory and 128GB eMMC storage, it provides reliable system response for daily field operations and project-level deployment.

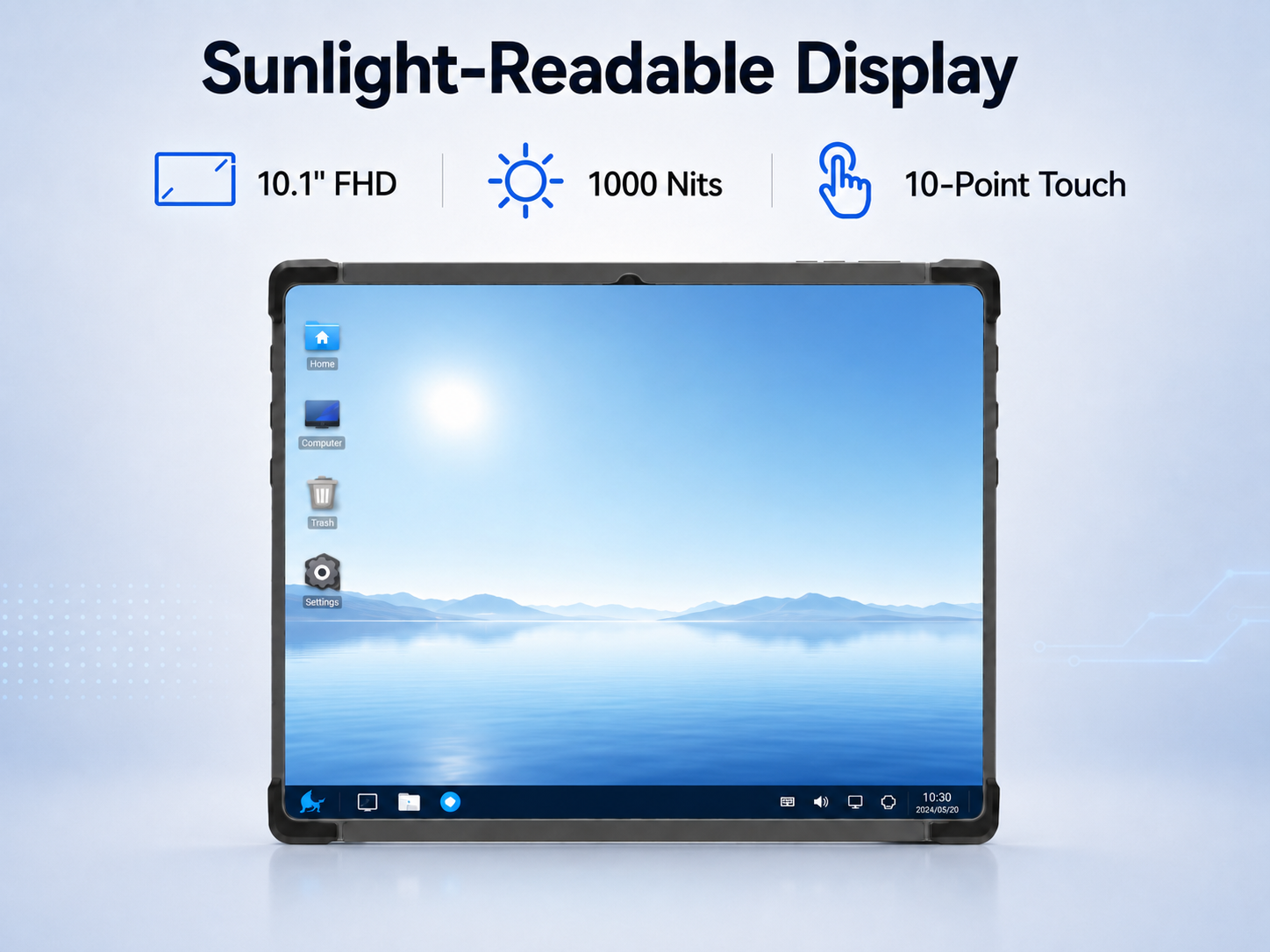

Sunlight-Readable Display for Outdoor Work

Featured with a 10.1-inch FHD display, 1920×1200 resolution, and up to 1000 nits brightness, the RP30 ensures clear visibility under strong outdoor light. Its wide viewing angle supports flexible operation in different field positions, while the G+G 10-point capacitive touchscreen with 7H hardness provides smooth touch response and improved resistance against scratches and impact.

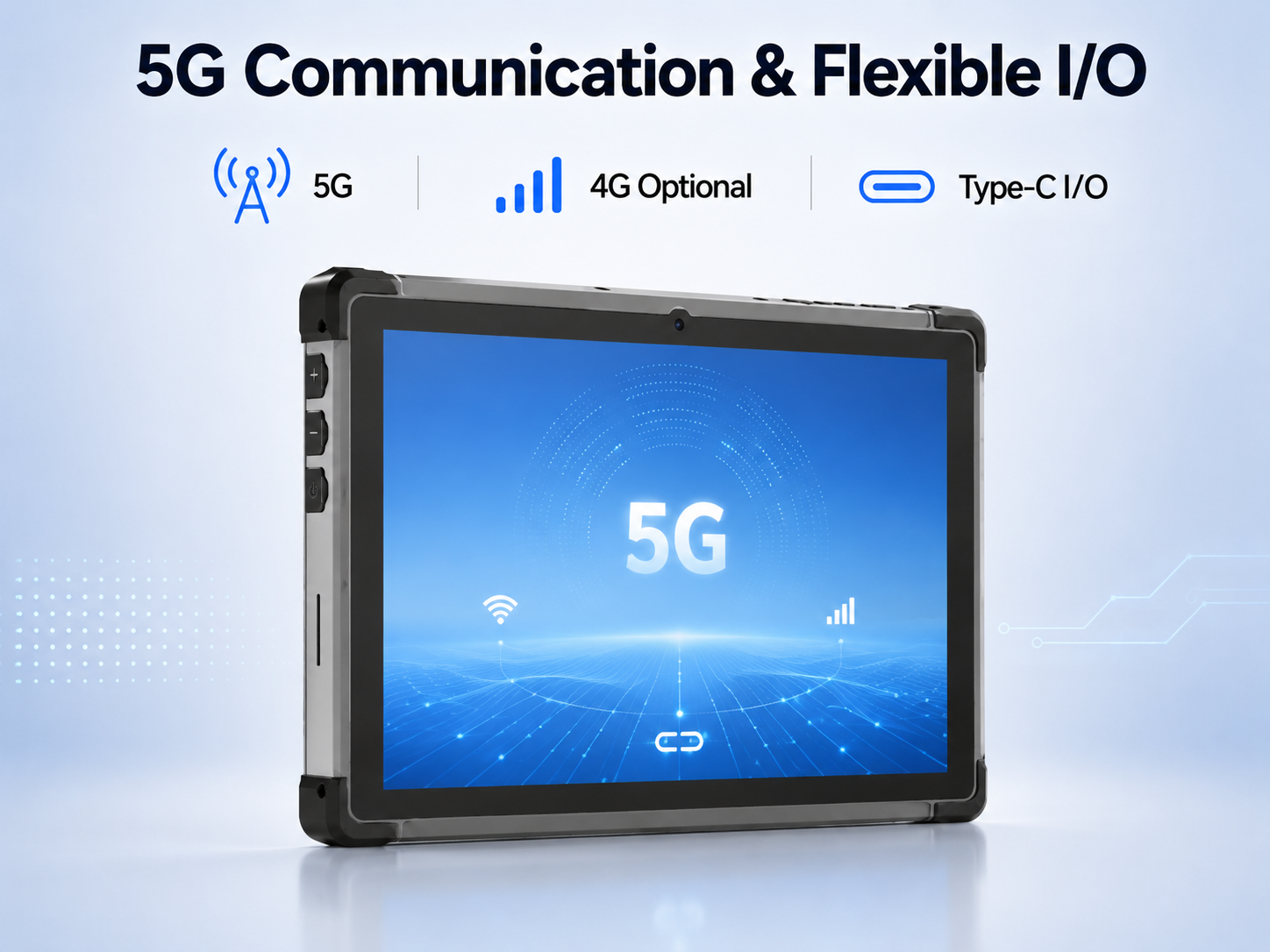

5G Communication & Flexible I/O

The RP30 supports 5G mobile communication, with optional 4G module configuration for different project needs. Multiple Type-C based interfaces support serial communication, wired LAN, full-function data transfer, and charging, enabling connection with industrial equipment, network systems, external terminals, and field accessories.

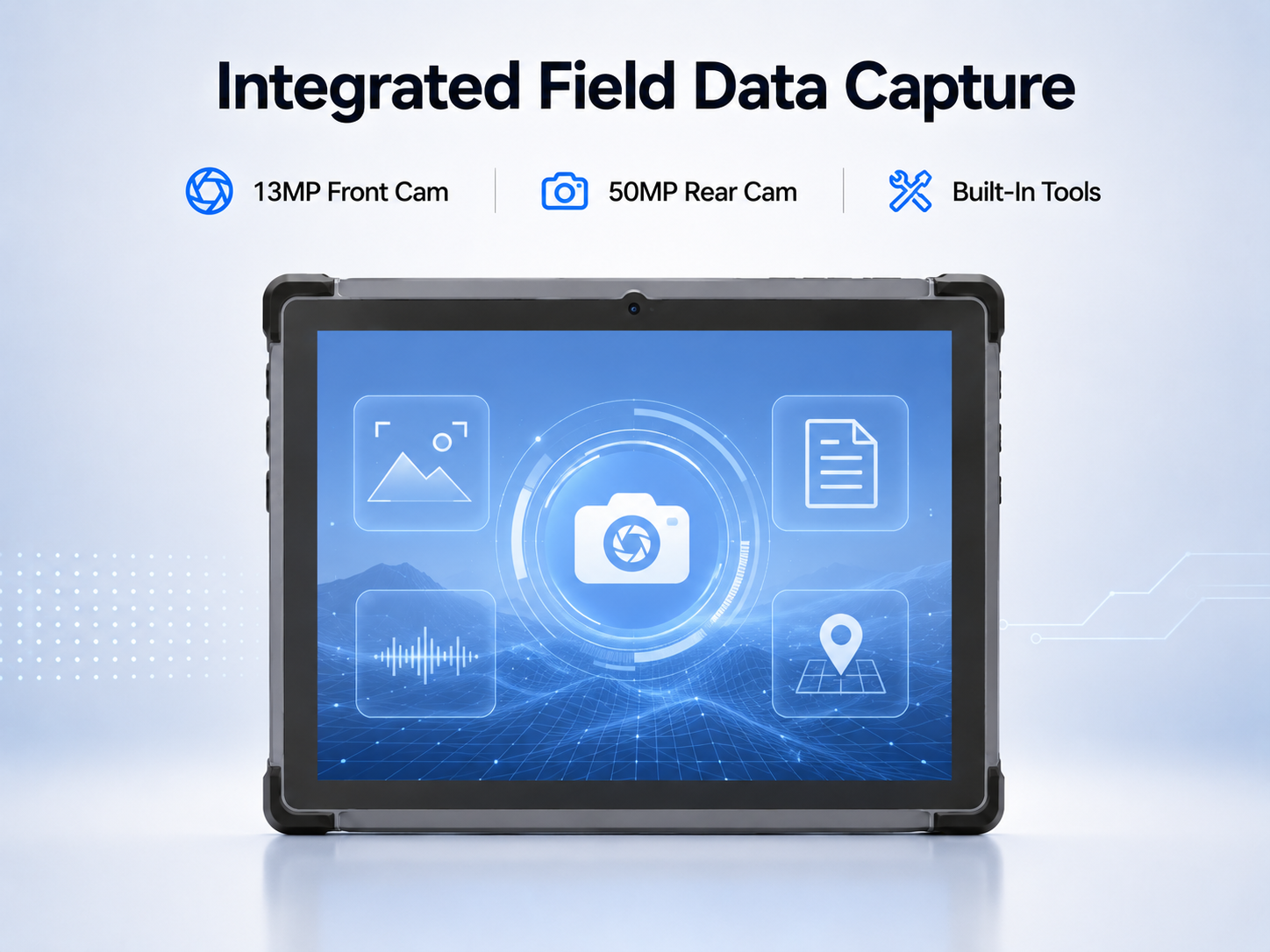

Integrated Field Data Capture

Designed for efficient field operation, the RP30 integrates a 13MP front camera and 50MP rear camera for video calls, inspection records, image capture, and on-site documentation. Built-in dual speakers, microphone, power indicator, module status indicator, and shortcut keys help improve communication efficiency and daily task handling in mobile environments.

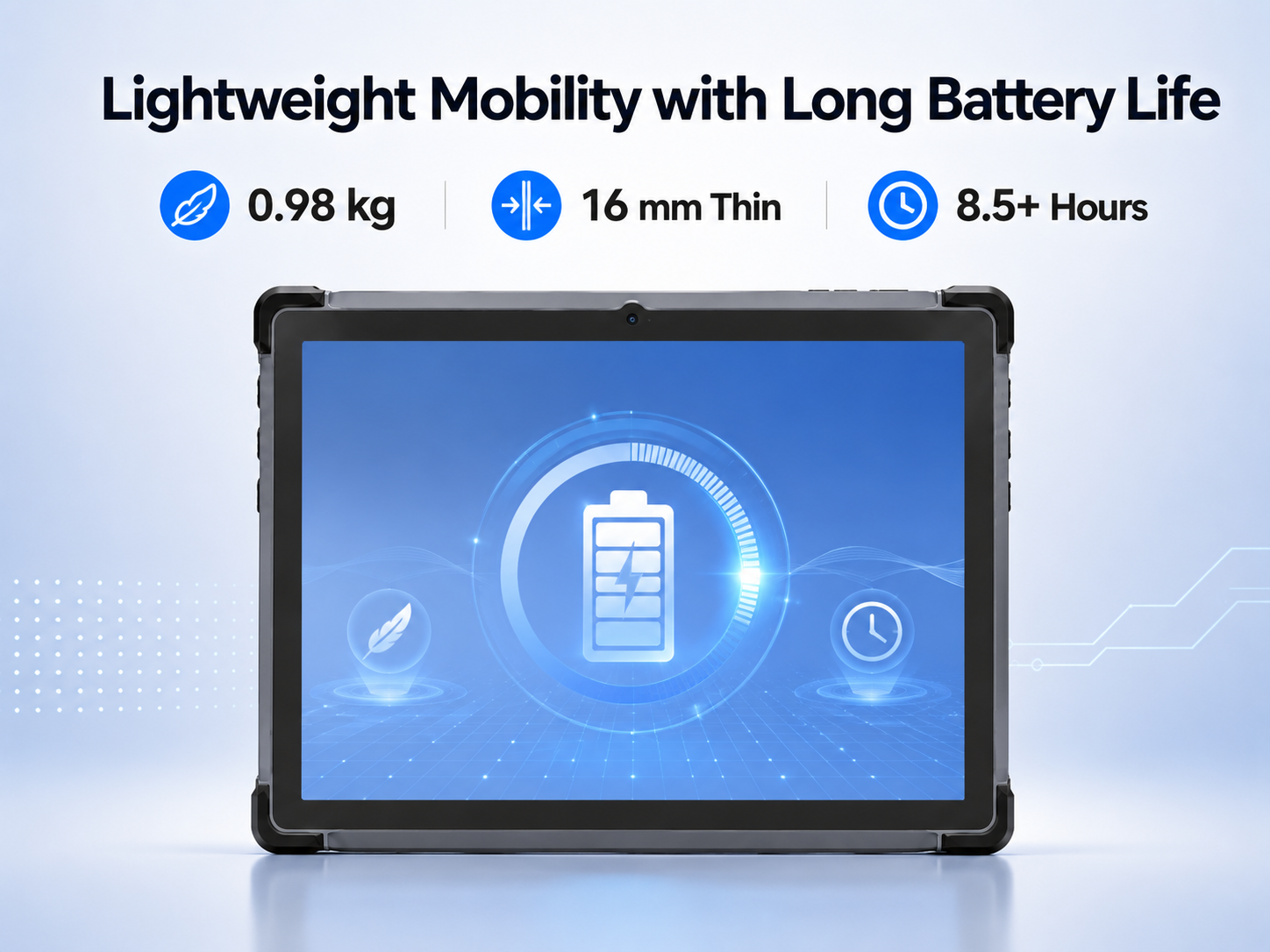

Lightweight Mobility with Long Battery Life

With a compact 10.1-inch body, 16mm thickness, and approximately 0.98kg weight, the RP30 is easy to carry, mount, and operate in mobile field scenarios. Its built-in 55.29Wh battery supports over 8.5 hours of operation under normal temperature conditions, making it suitable for extended outdoor shifts, inspection work, and emergency communication tasks.

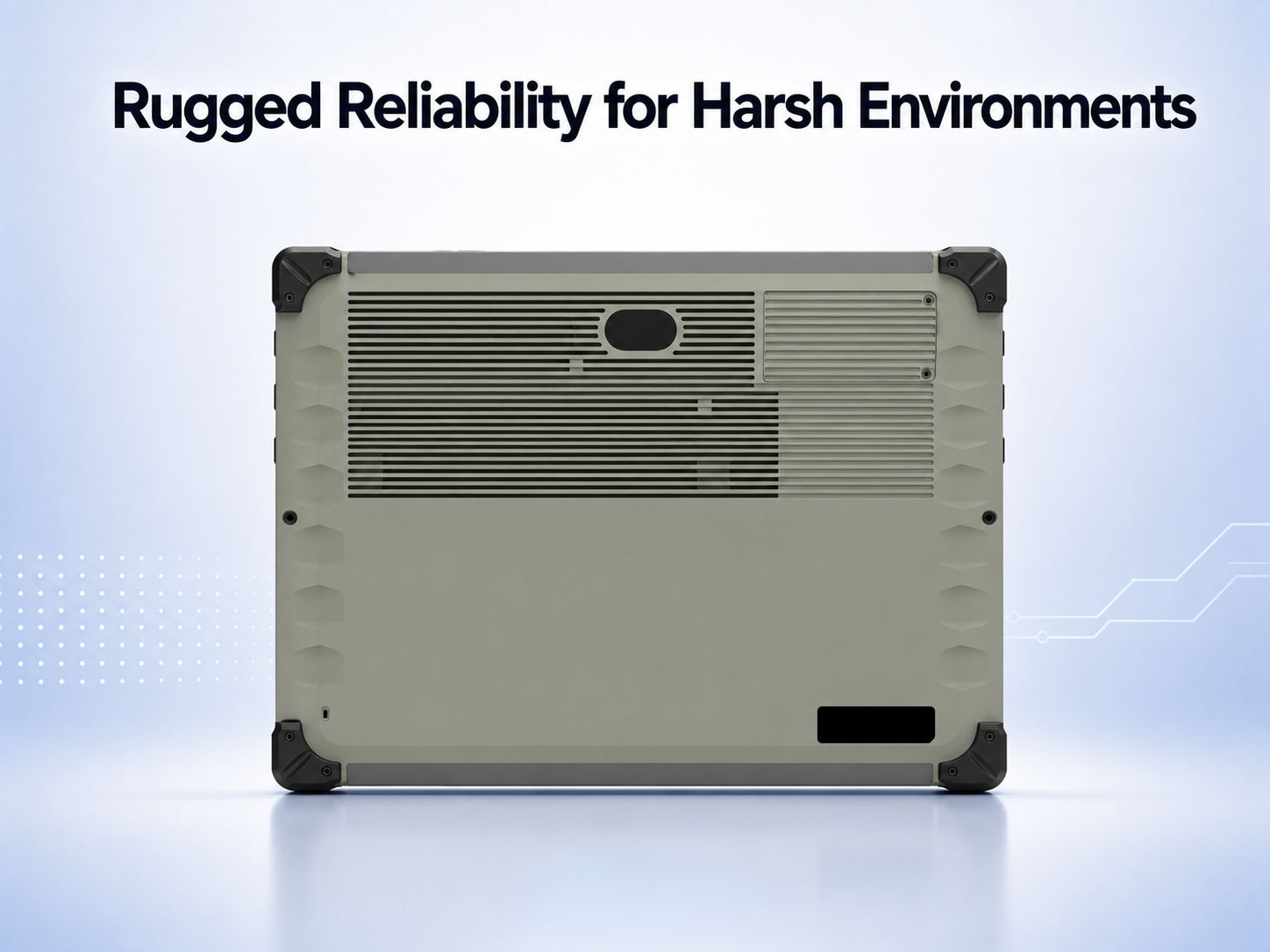

Rugged Reliability for Harsh Environments

The RP30 is designed for demanding field environments, supporting operation from -10°C to 55°C and storage from -40°C to 70°C. It is engineered to withstand humidity, vibration, shock, drops, rain, sand, low pressure, salt mist, mold, EMC interference, and ESD conditions, helping ensure stable performance in mission-critical outdoor and industrial applications.

RP30 Specifications

Download PDF

CPU

Rockchip® RK3588, 2.4GHz main frequency, Octa-core (4×Cortex-A76 Big Cores + 4×Cortex-A55 Little Cores)

GPU

Integrated ARM Mali-G610 MC4 GPU with dedicated 2D graphics acceleration module

Memory

16GB On-board LPDDR4 RAM

Storage

128GB On-board eMMC

Display

10.1-inch, Resolution 1920×1200,
Backlight brightness 1000cd/m² (sunlight readable)

Touch Screen

10 point capacitive screen , G+G , Corning gorilla hardness above 7H , scratch resistant

Camera

13MP Front Camera,
50MP Rear Camera

Wireless Communication

5G Module Communication, 4G Module optional

I/OInterfaces

1×USB-C Serial Port (RS232/RS485/TTL Adaptive),
1×USB-C Ethernet Port (Supports USB-C to 100M Wired LAN),
1×Full-function USB-C Port,
1×USB-C Charging Port

Environmental Specification

Temperature:
- Operating: -20ºC to 55ºC（Customizable：-40ºC to 55ºC）
- Storage: -40ºC to 70ºC（Customizable：-50ºC to 70ºC）
Humidity:5%- 95% RH , non-condensing

Battery

11.4V/4850mAh/55.29Wh, 3S1P Non-removable Built-in Battery;
Charging Time: ≤3 Hours;
Operating Time: ≥8.5 Hours at Room Temperature

Adapter

Input: 100-240V AC, 50/60Hz;
Output: 20V 3.25A/15V 3A/12V 3A/9V 3A/5V 3A Fast Charging

Dimensions & Weight

246.9×177×16mm (Tolerance ±1mm, Excluding Corner Protectors & Bracket); Fanless Cooling, GY06 Standard; Weight: 0.98kg
