IN156R

Rugged Laptop

Extreme Durability,
Anywhere, Anytime

The IN56R is a rugged, high-performance portable computing device designed for demanding industrial, field, and outdoor environments. Powered by Intel® Core™ Ultra 7 or optional i7 processors and optional NVIDIA® RTX4060M graphics, it delivers seamless multitasking and professional graphics performance. The 15.6-inch high-brightness FHD display ensures clear visibility in direct sunlight, while optional capacitive multi-touch supports glove-friendly operation.

Its modular, portable design features a hot-swappable dual 60Wh battery system and versatile expansion interfaces, including Bluetooth, 4G LTE, and GNSS. Comprehensive connectivity options, such as Thunderbolt 4, USB 3.0, HDMI 2.1, Ethernet, COM ports, and Wi-Fi 6, allow seamless integration with industrial and aviation equipment.

Built for extreme conditions, the IN56R meets MIL-STD-810H standards, offers IP65 dust and water resistance, wide temperature operation, and professional ESD protection. These features make it an ideal solution for outdoor exploration, industrial work, and emergency response.

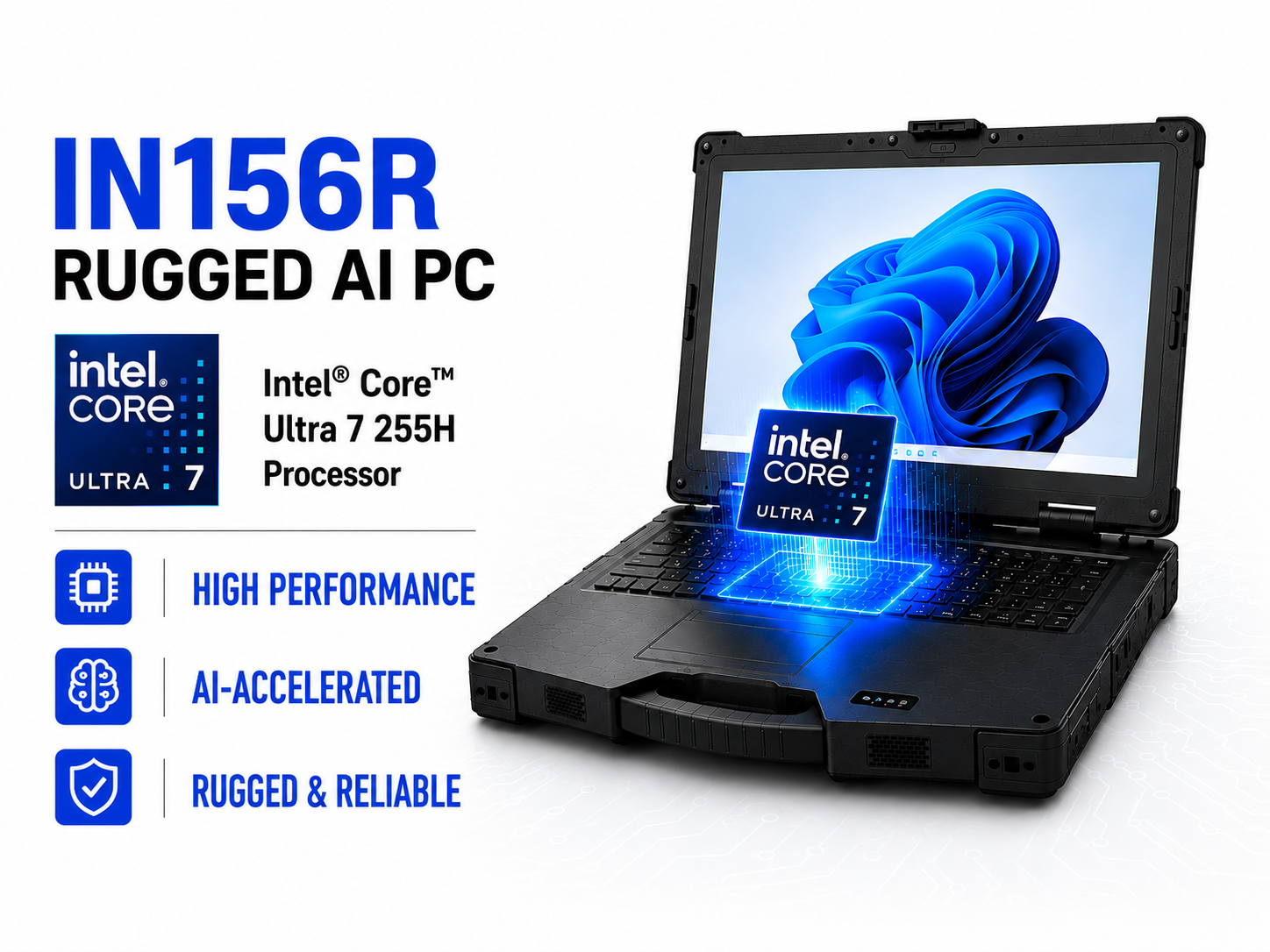

Powerful Performance for All Tasks

Equipped with the Intel® Core™ Ultra 7 Processor 255H or the optional Intel® Core™ i7-13700H Processor, and with optional NVIDIA® RTX4060M graphics, the IN56R handles complex calculations, heavy multitasking, and professional graphics seamlessly. Users can rely on consistent, high-speed performance for industrial applications, field operations, or creative work.

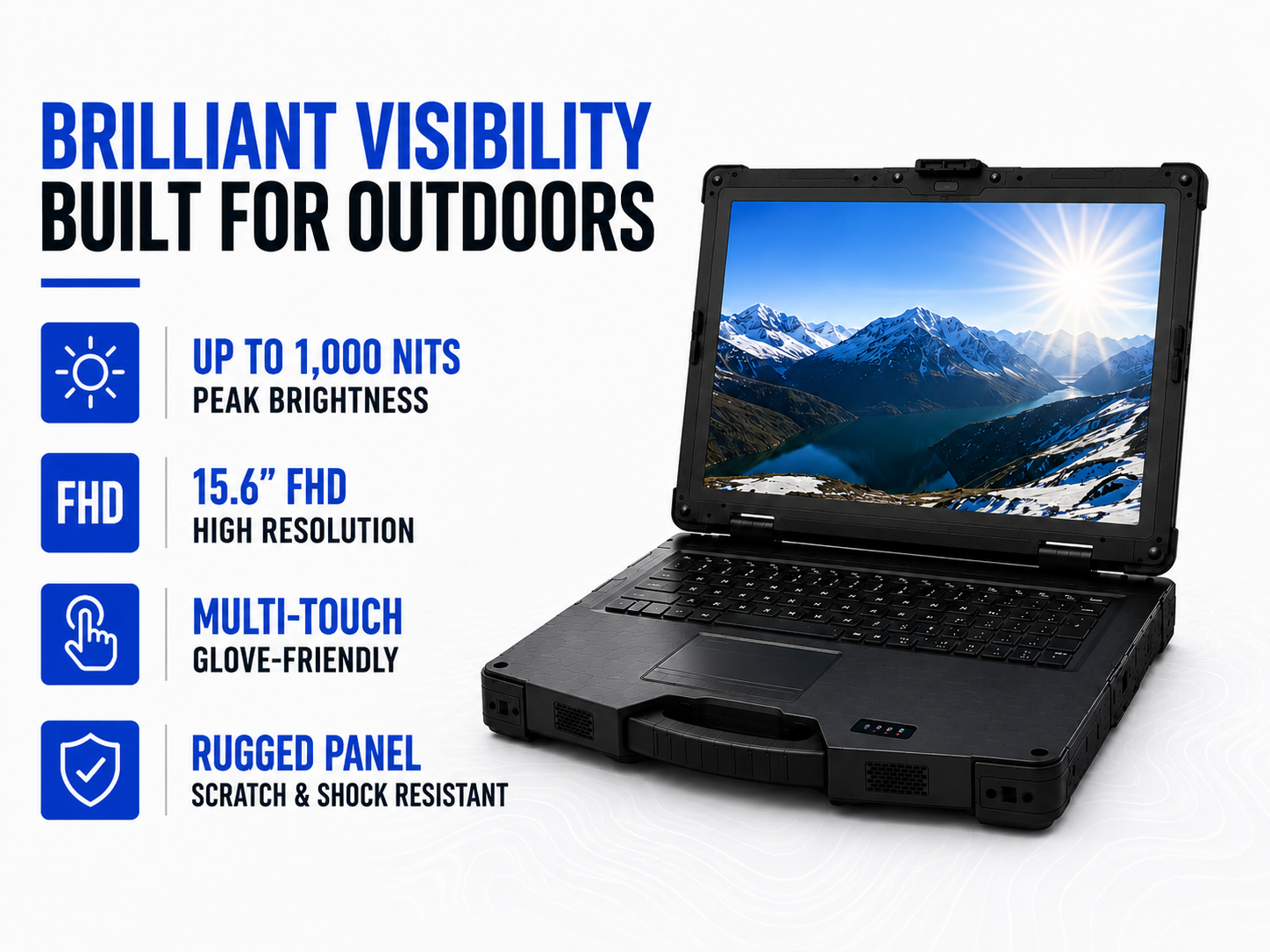

Sunlight-Readable Display

The 15.6-inch high-brightness FHD display delivers up to 1,000 nits peak brightness, providing crystal-clear visibility even under direct sunlight while minimizing glare and reflections. The optional capacitive multi-touch supports glove-friendly operation, and its rugged reinforced panel offers excellent scratch and shock resistance, keeping the screen visible, responsive, and accurate in all outdoor working conditions.

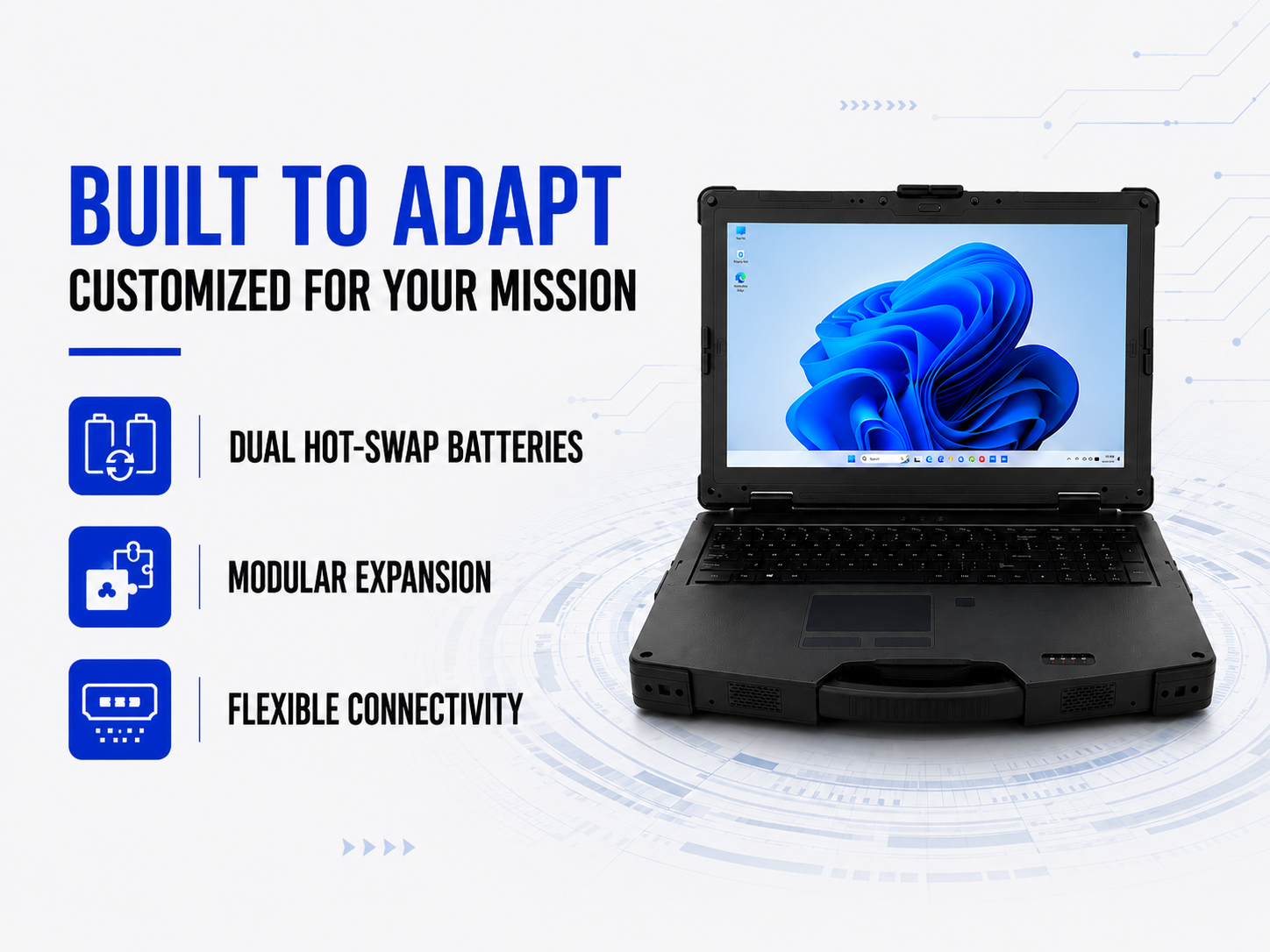

Modular & Portable Design

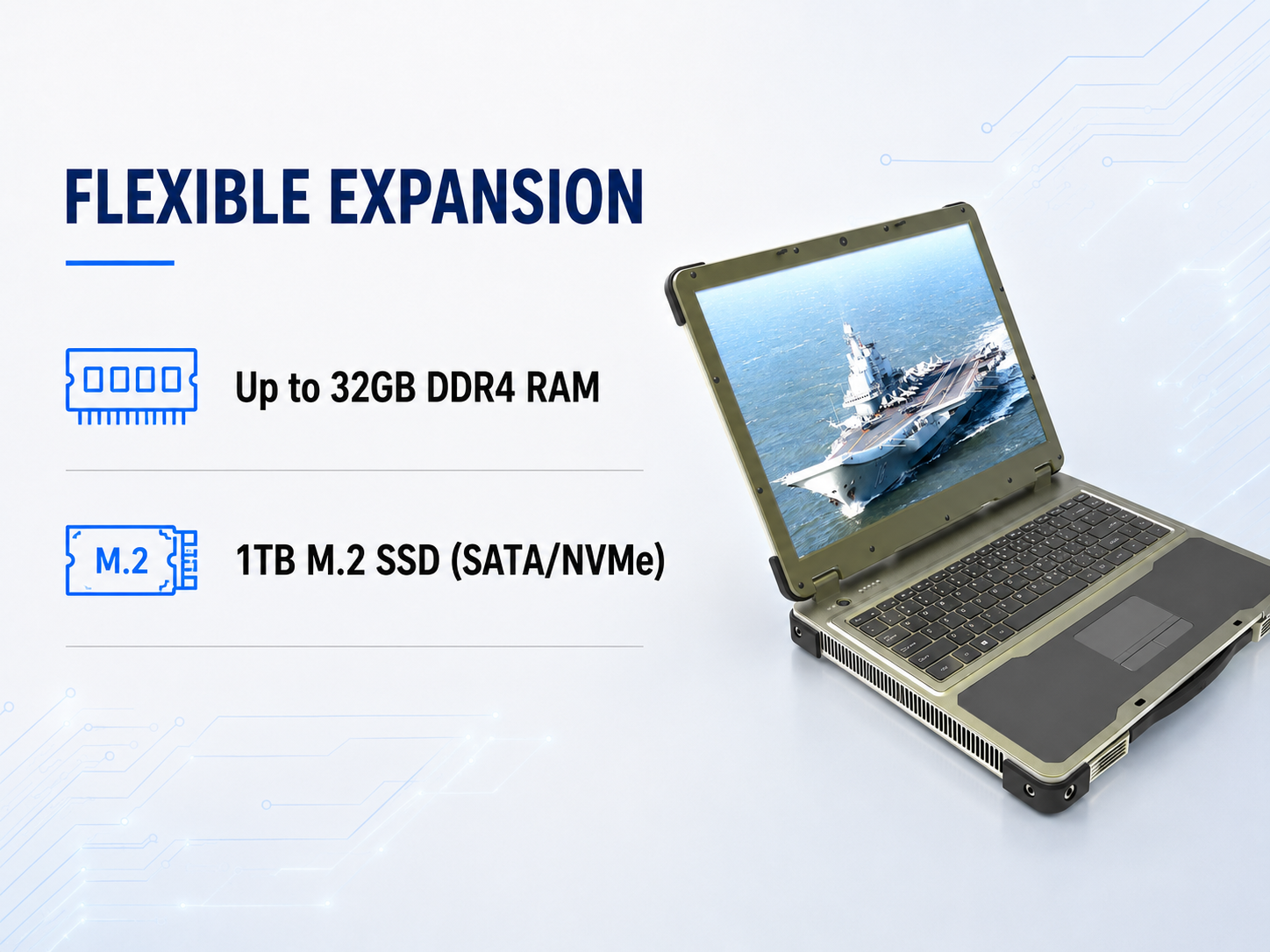

The IN56R perfectly combines rugged durability with lightweight portability, featuring a hot-swappable dual 60Wh battery system to ensure uninterrupted field operations. Its innovative modular design and expansion interfaces support on-demand upgrades, including Bluetooth, 4G LTE modules, standard precision GNSS, and other optional components, enabling users to build highly customized devices tailored to their specific operational needs.

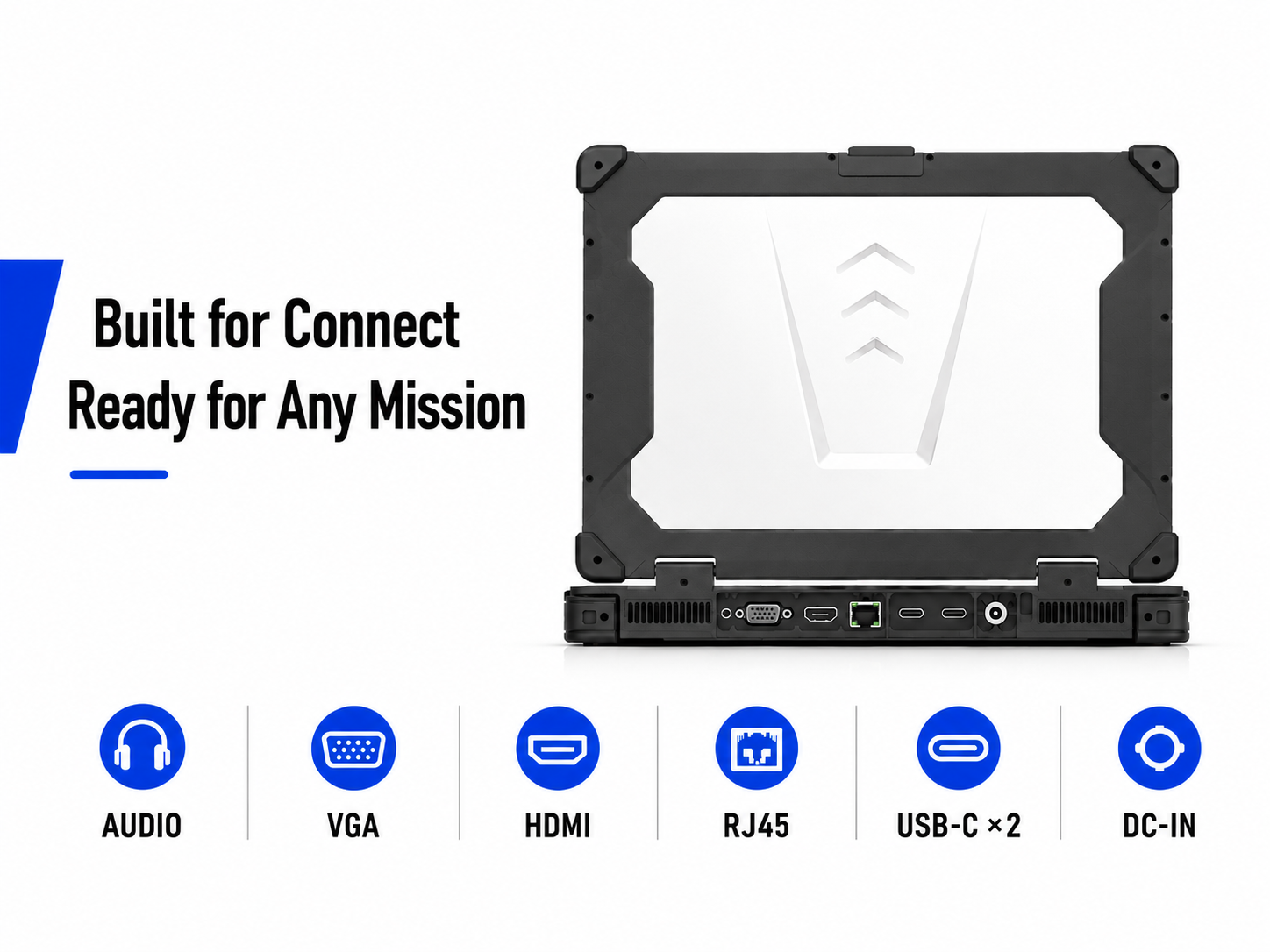

Versatile Connectivity

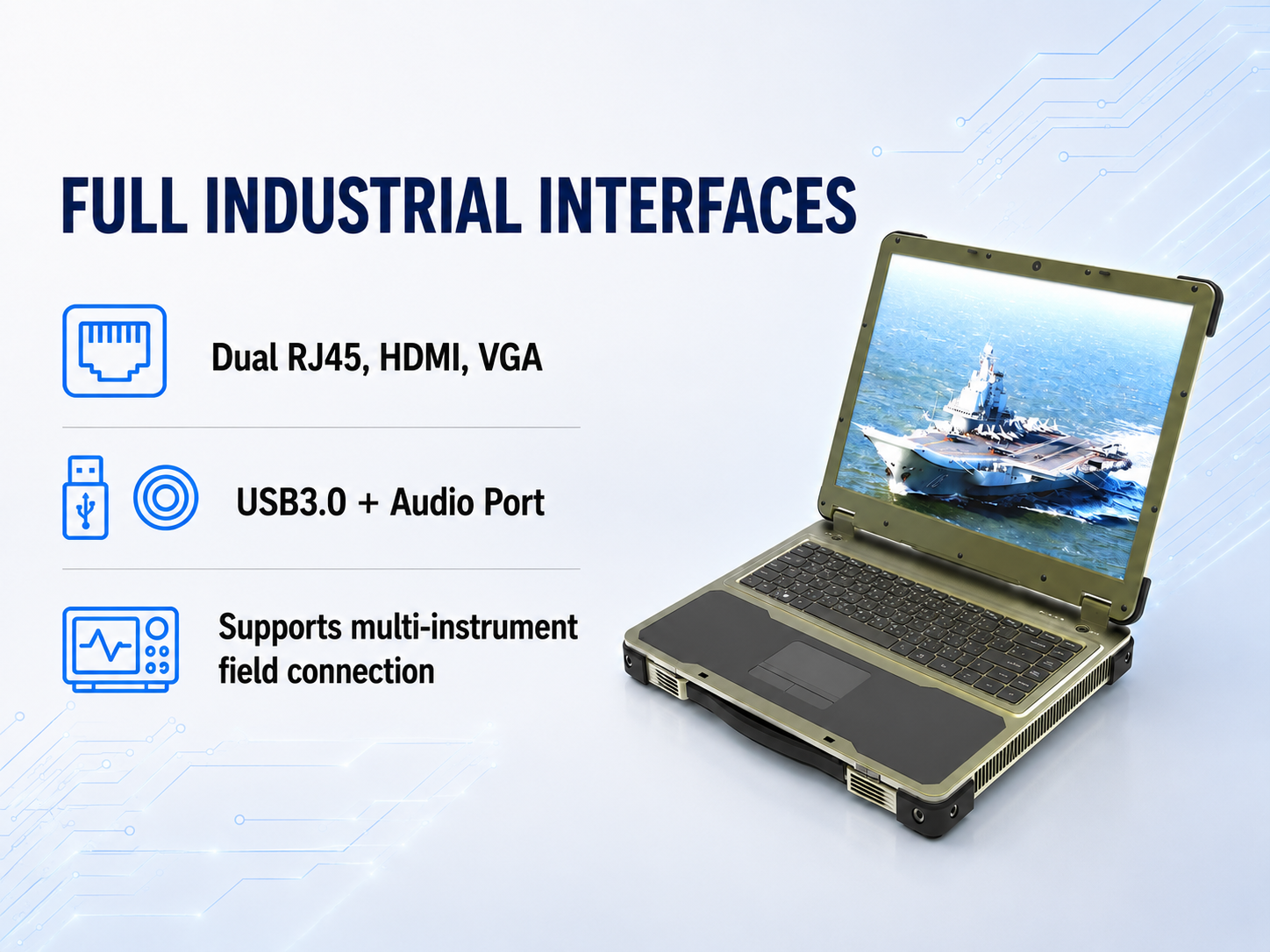

The IN56R is equipped with a full suite of rugged‑optimized interfaces, including Thunderbolt 4, USB 3.0, HDMI 2.1, Ethernet, COM ports, Wi-Fi 6, and removable 4G LTE modules. It seamlessly integrates with industrial, field, and aviation equipment, supporting fast data transfer and reliable communication in any scenario.

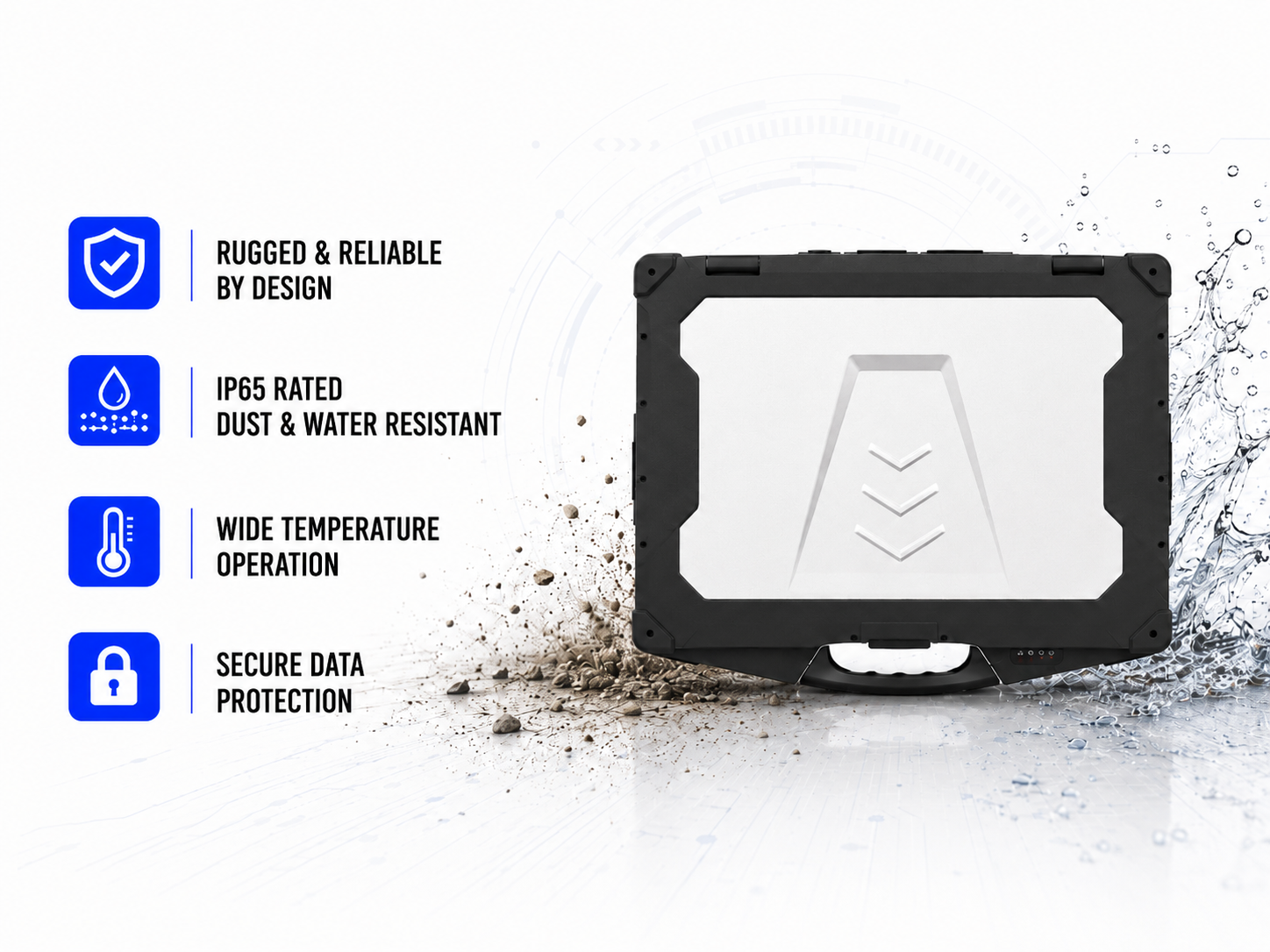

Exceptional Durability & Security

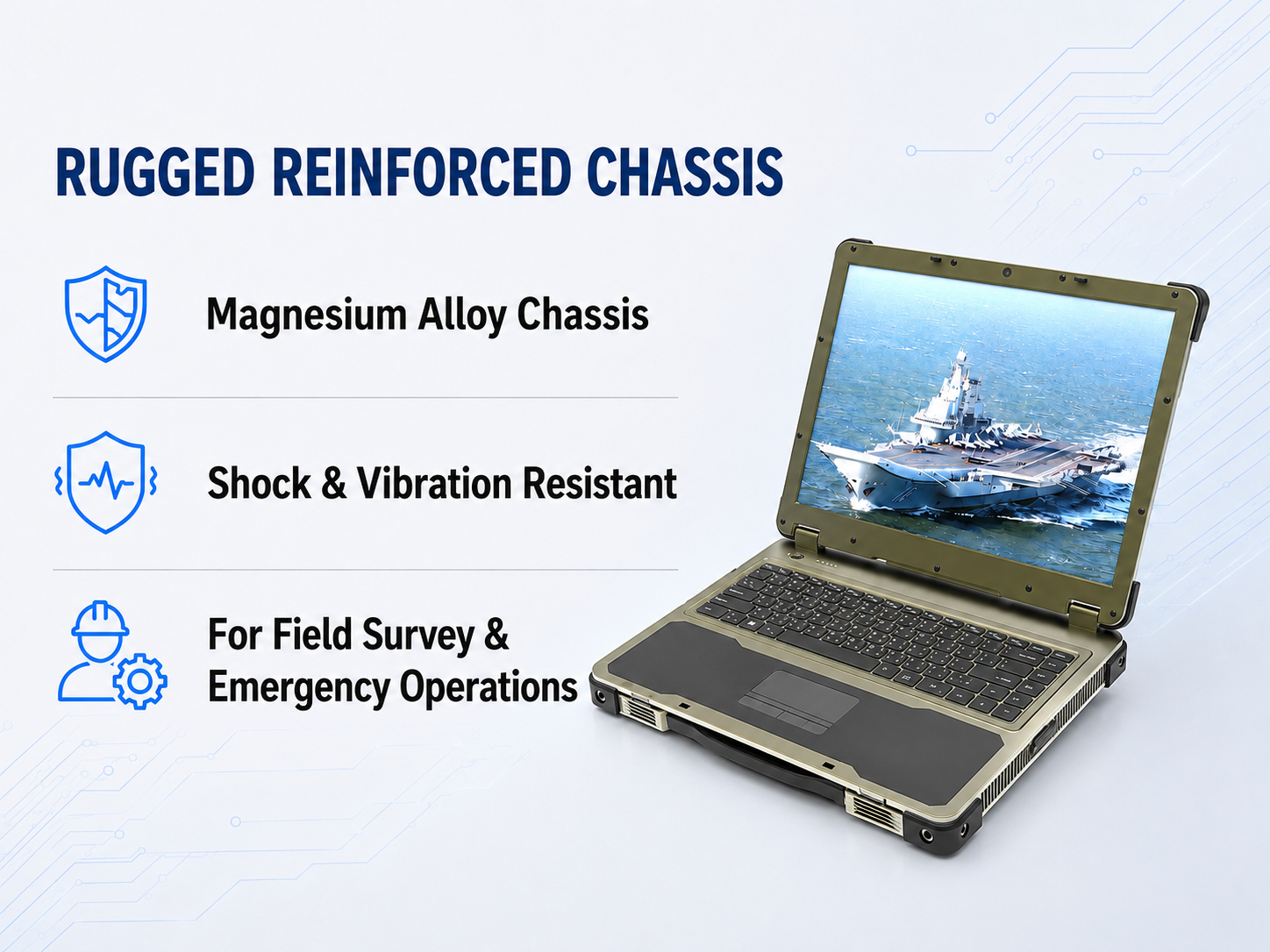

The IN56R features a high-strength rugged chassis and carefully selected industrial-grade components, engineered to perform reliably in demanding environments. It complies with the MIL-STD-810H environmental testing standard and is rated IP65 for dust and water resistance, providing effective protection against dust ingress and liquid exposure. Designed for harsh industrial applications, the device offers exceptional wide-temperature operation and professional-grade ESD protection, ensuring stable performance under challenging conditions. An optional secure disk erase function is available to help safeguard sensitive, confidential, and mission-critical data.

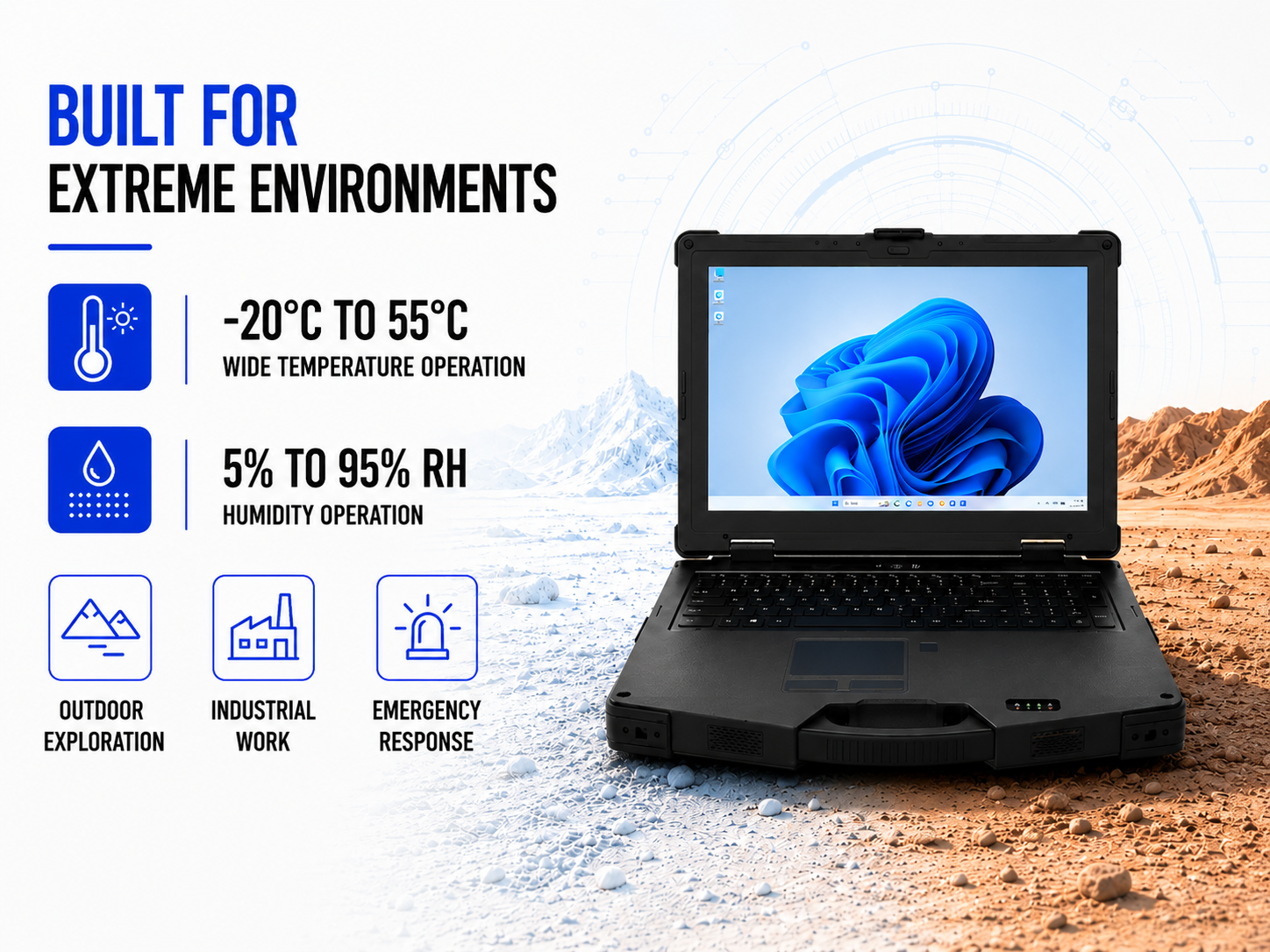

Built For Extreme Environmrnts

Operates in temperatures from -20°C to 55°C and 5%-95% RH humidity. The device performs reliably in harsh heat, freezing cold, or high humidity, making it ideal for outdoor exploration, industrial work, and emergency response.

IN156R Specifications

Download PDF

CPU

Intel® Core™ Ultra 7 Processor 255H 24M Cache, up to 5.10 GHz

Graphics Controller

Intel® Iris® Xe Graphics eligible 1.50 GHz
Optional:NVIDIA GeForce RTX4060M 8G

Memory

16GB/32GB DDR5
MAX Optional: 64G

Storage

Optional: 128GB/256GB/512GB/1TB/2TB/4TB/8TB（GEN4*4 NVME）
Optional: Disk Wiper

Display

15.6inch, 1920（RGB）*1080, Luminance 1000cd/㎡, Sunlight Readable
Optional: LCD, 15.6inch 1920（RGB）*1080, Luminance 1000cd/㎡（workin-40℃）

Keyboard

Waterproof LED backlit membrane keyboard with FN shortcut functions

Communication

1000M Ethernet
Intel® Wi-Fi6 802. 11ax (removable)
Bluetooth (v5.2) (removable)
4G LTE mobile broadband (removable)
Standard precision GNSS (GPS, GLONASS, Galileo) (On board)

I/OInterfaces

Thunder 4*2
USB 3.0 port * 2
Ethernet (RJ45) * 2
COM*1+VGA*1（Optional；2*COM)
HDMI 2.1 port (type A)*1
Audio in/out (combo jack) *1
Grounding Post*1
Custom aviation connector *1
Kensington Security Slot*1

Environmental Specification

Temperature:
- Operating: -20ºC to 55ºC
- Storage: -40ºC to 70ºC
Humidity:5%- 95% RH , non-condensing

Battery

Battery capacity 1：60Wh ,（pluggable）
Battery capacity 2：60Wh ,（pluggable）

Adapter

Input voltage: AC100V ~240V , 60/50Hz , Output voltage: DC19V , 9.47A
