IN300

Rugged Laptop

Multi-Screen Fully Rugged Computer
Built for Command & Field Operations

The IN300 Rugged Mobile Workstation is a high-performance, multi-display rugged system designed for mission-critical field operations, command centers, industrial control, and mobile command applications. Featuring a 15.6-inch triple-screen design, latest Intel® high-performance processors, and modular expansion architecture, IN300 delivers unmatched productivity in demanding environments.

With full rugged protection, hot-swappable dual battery design, and flexible I/O expansion, IN300 is engineered to support complex workflows in extreme outdoor and industrial scenarios.

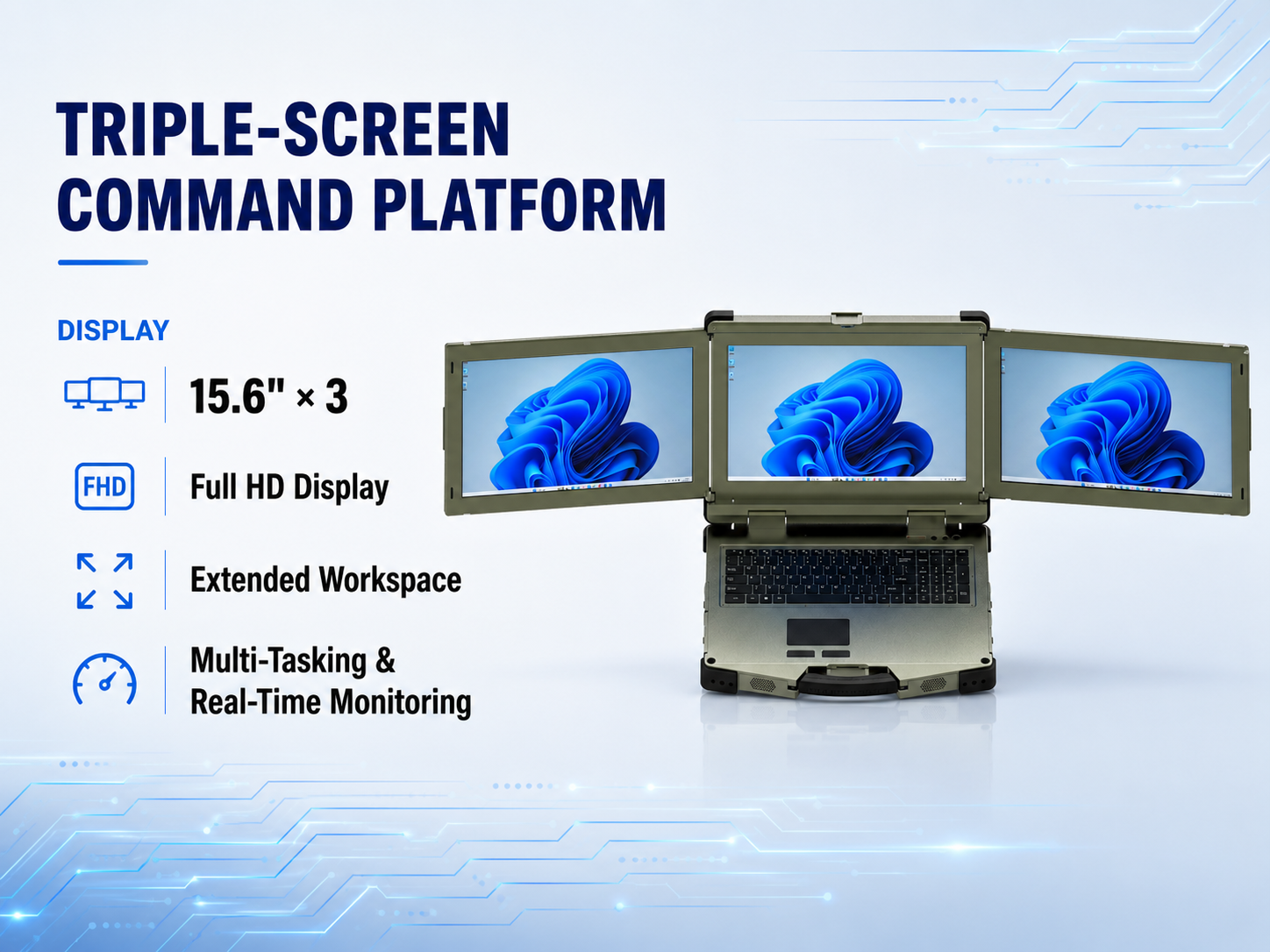

Triple-Screen Command Platform

The IN300 integrates a 15.6-inch × 3 Full HD display system, enabling seamless multi-tasking, real-time monitoring, and extended workspace visualization for command control, simulation, and field operations.

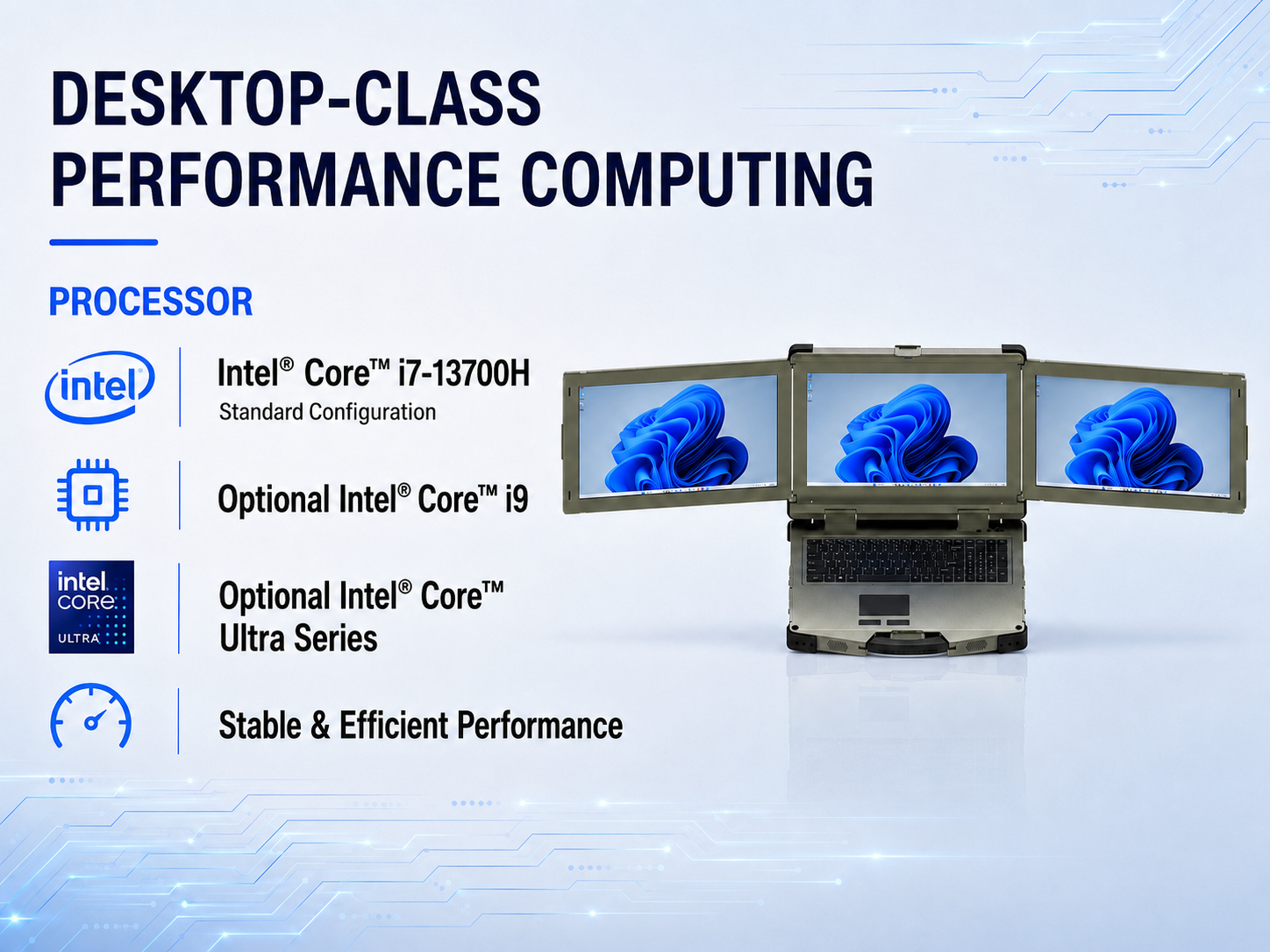

Desktop-Class Performance Computing

Powered by Intel® Core™ i7-13700H (Standard Configuration), the IN300 delivers stable and efficient computing performance for demanding industrial workloads. Optional Intel® Core™ i9 and Intel® Core™ Ultra series processors are available for higher-level computing requirements.

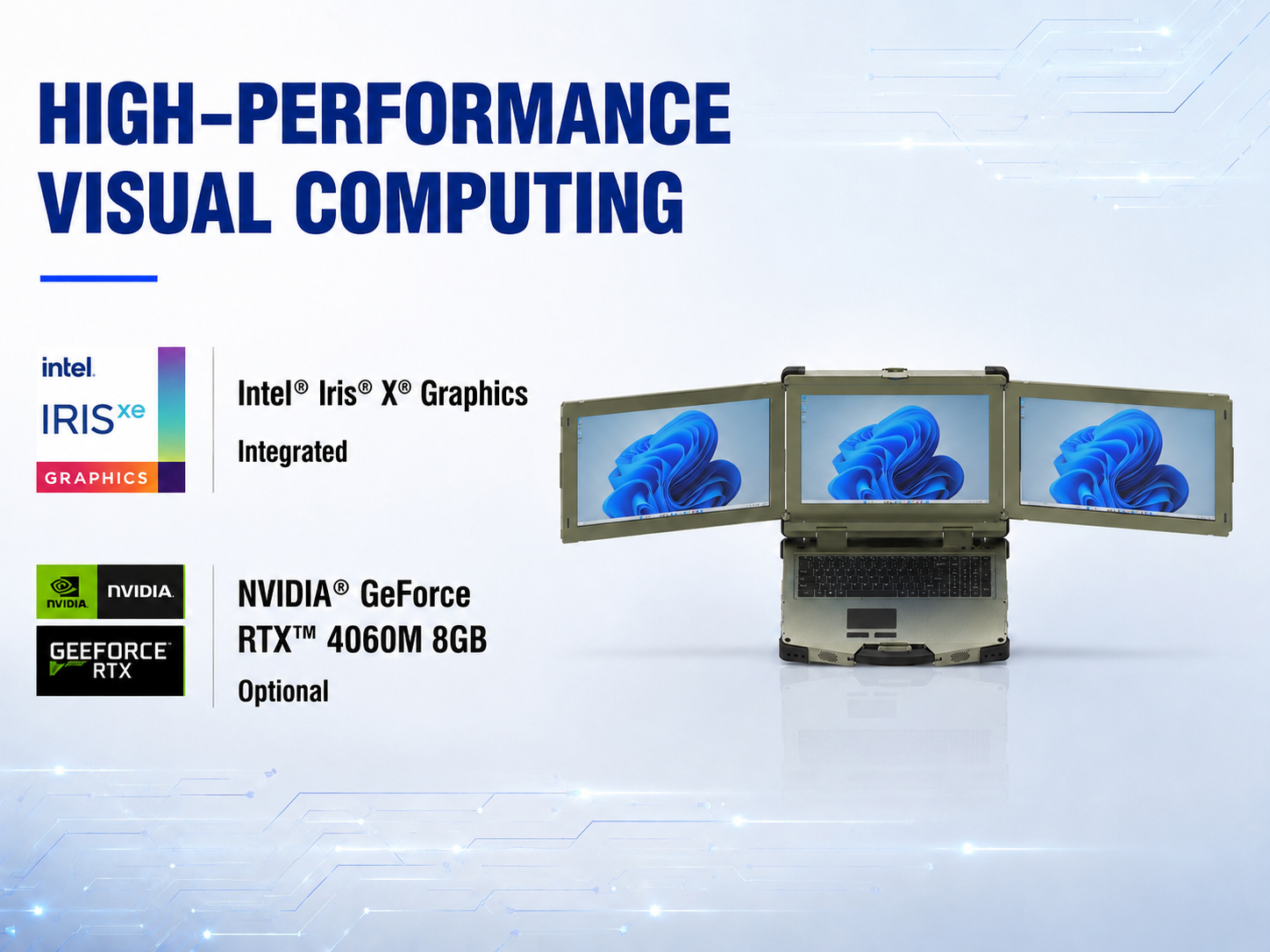

High-Performance Visual Computing

With integrated Intel® Iris® Xe graphics and optional NVIDIA® GeForce RTX 4060M 8GB, the system supports advanced visualization, GIS applications, video analytics, and AI-driven computing tasks.

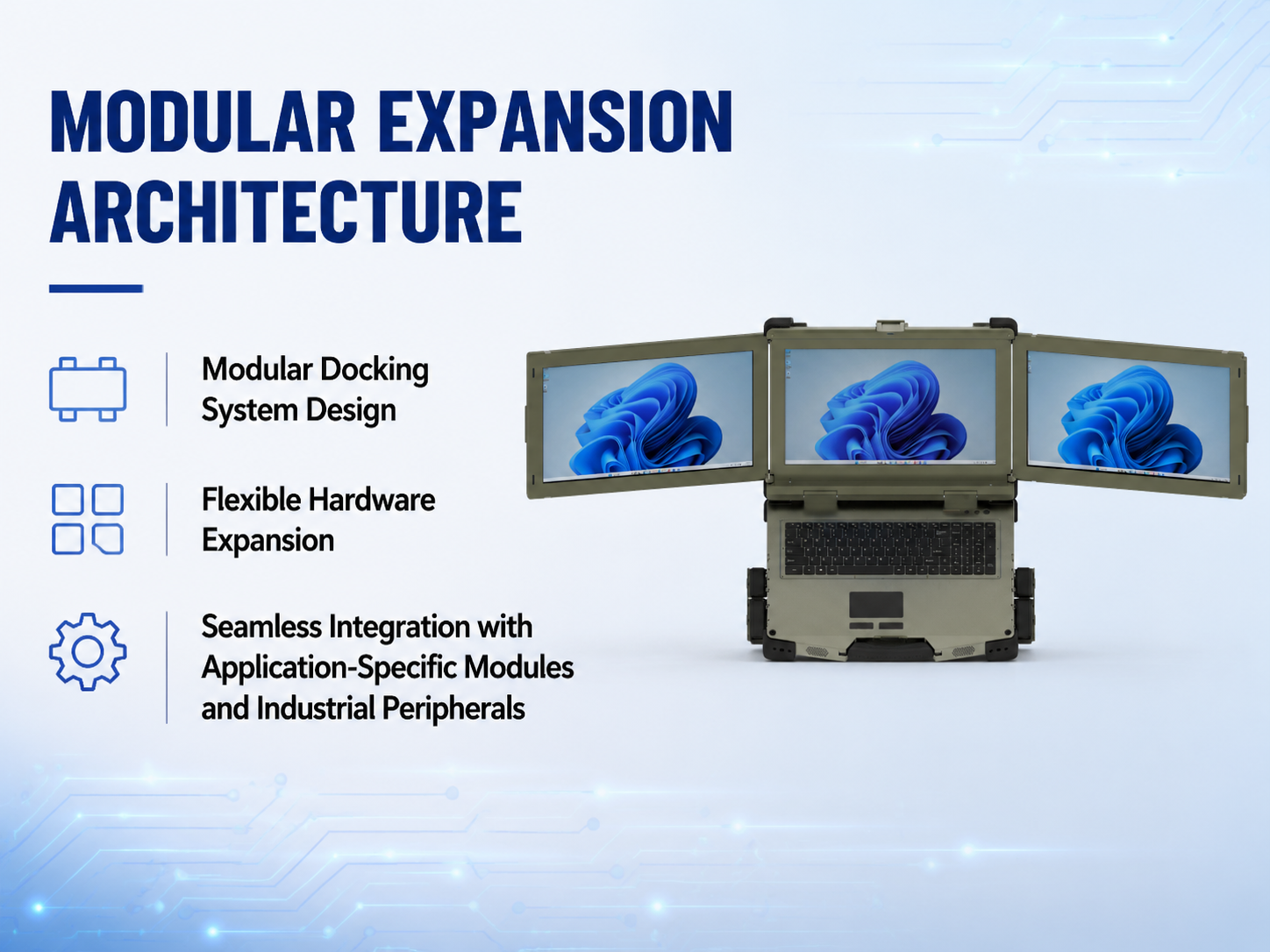

Modular Expansion Architecture

The IN300 features a modular docking system design, enabling flexible hardware expansion and seamless integration with application-specific modules and industrial peripherals.

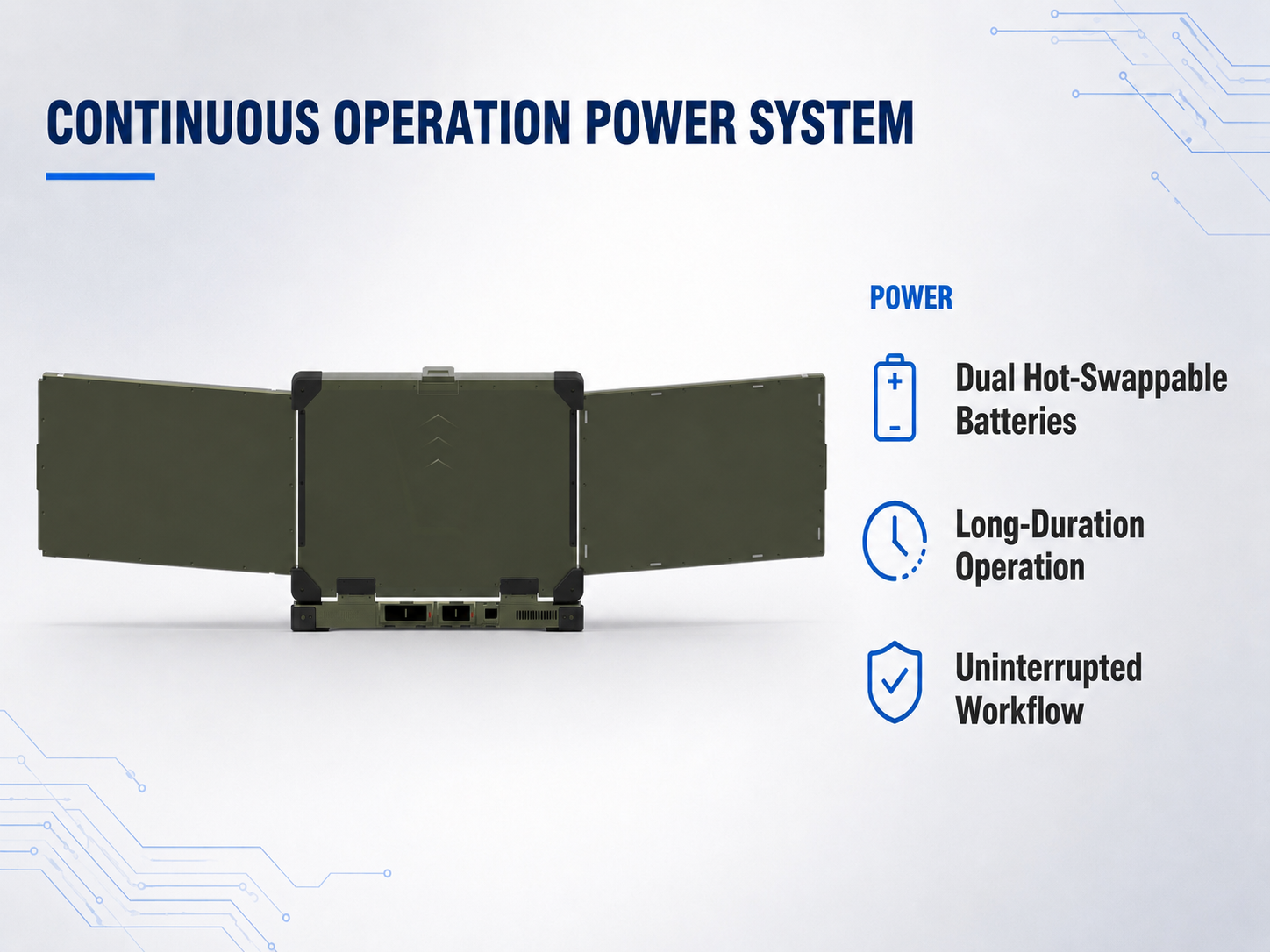

Continuous Operation Power System

A dual hot-swappable battery architecture ensures long-duration operation and uninterrupted workflow, supporting mission-critical tasks in extended field deployments.

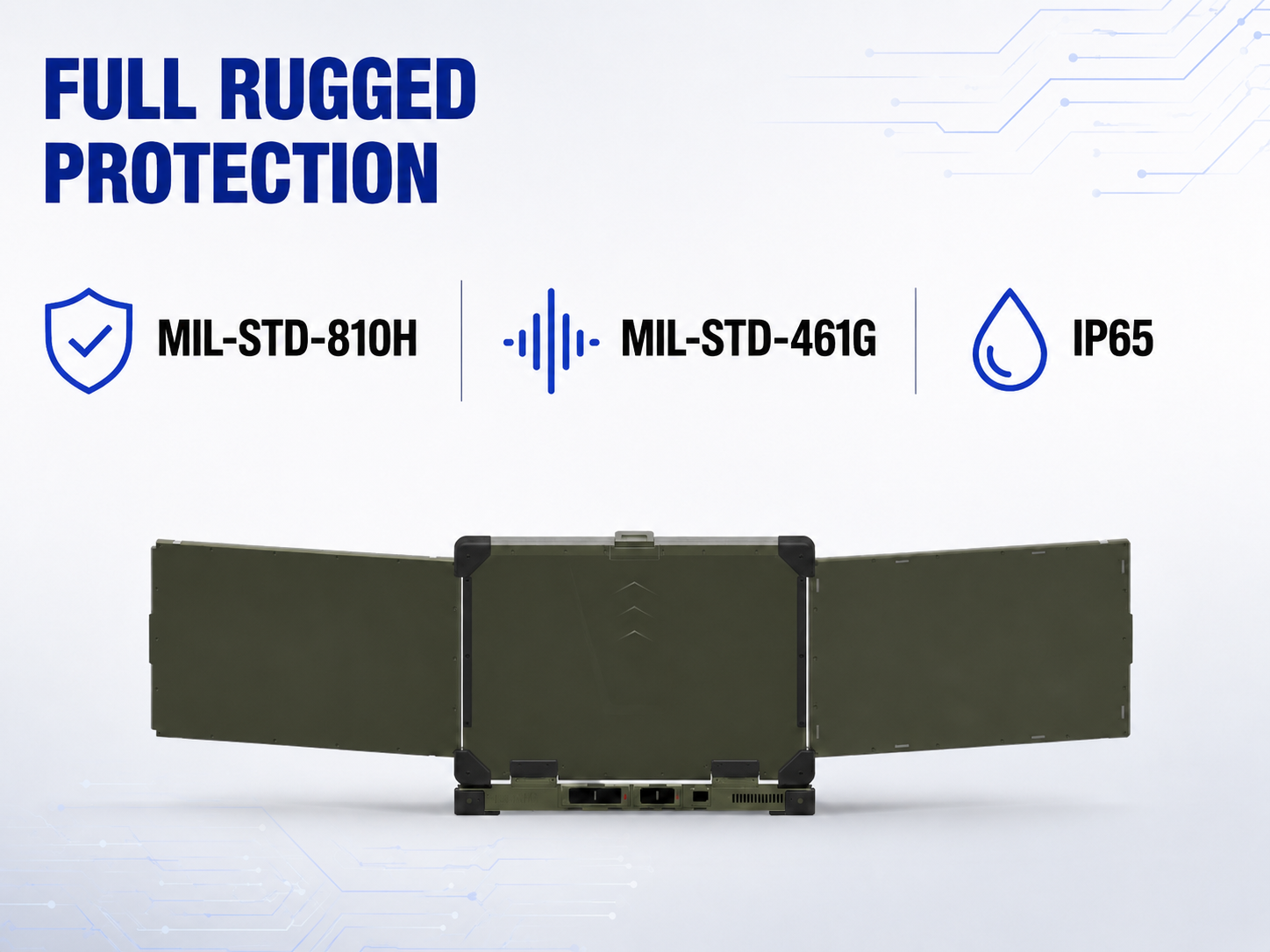

Full Rugged Protection

Built to meet MIL-STD-810H / MIL-STD-461G standards and designed for IP65 protection, the IN300 withstands shock, vibration, dust, water, and extreme environmental conditions.

IN300 Specifications

Download PDF

CPU

Standard: Intel Core i7-13700H, 24M Cache, up to 5.0GHz
Optional: i9-13900H / Ultra 5 235H / Ultra 7 255H / Ultra 9 285H

Graphics Controller

Intel Iris Xe Graphics (1.50GHz)
Optional: NVIDIA RTX 4060M 8GB

Memory

16GB/32GB DDR5, expandable up to 64GB

Storage

Optional: 128GB/256GB/512GB/1TB/2TB/4TB/8TB（GEN4*4 NVME）
Optional: Disk Wiper

Display

3 × 15.6” FHD 1920×1080, 1000 nits, sunlight readable
Optional low-temp panel: operational down to -40℃

Keyboard

Backlit membrane keyboard with waterproof construction

Communication

1000M Ethernet
Intel® Wi-Fi 6 802. 11ax (removable)
Bluetooth (v5.2) (removable)
4G LTE mobile broadband (removable)
Standard precision GNSS (GPS, GLONASS, Galileo) (On board)

I/OInterfaces

USB Type-C (Full-Featured)*1
USB 3.0　port* 3
Ethernet (RJ45) * 2
COM*1+VGA*1 (Optional; 2*COM)
HDMI 2.1port (type A)*1
DC-In jack*1
Audio in/out (combo jack)*1
Grounding Post*1
Custom aviation connector*1

Environmental Specification

Temperature:
-Operating: -20ºC to 55ºC (Customizable: -40ºC to 55ºC)
-Storage:- 40ºC to 70ºC (Customizable: -50ºC to 70ºC)
Humidity: 5% - 95% RH, non-condensing

Battery

Main battery: 155Wh hot-swappable; 184.3Wh low-temp version optional
Aux battery: 58Wh (non-removable)

Adapter

Input voltage: AC100V~240V, 60/50Hz, Output voltage: DC 19V, 9.47A

Ruggedness

Designed to meet MIL-STD-810H & MIL-STD-461G
IP65 dust and water ingress protection
